| Order No. | 7760054248 |

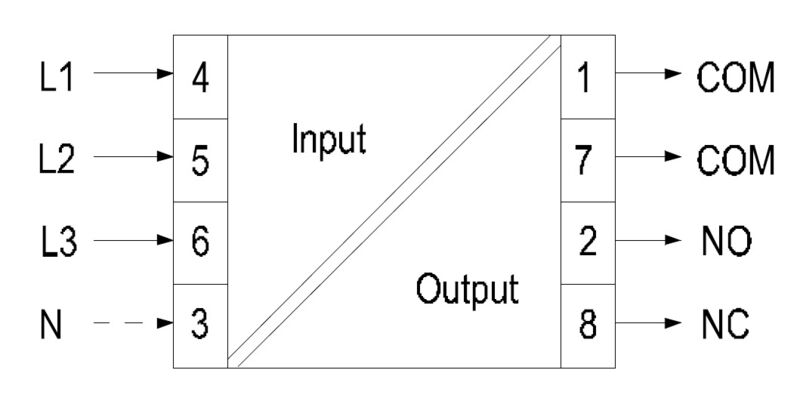

| Type | EPAK-VMR-3PH-PH |
| GTIN (EAN) | 6944169733802 |
| Qty. | 1 items |
| Depth | 89 mm |
| Depth (inches) | 3.504 inch |
| Height | 100 mm |
| Height (inches) | 3.937 inch |
| Width | 17.5 mm |
| Width (inches) | 0.689 inch |
| Length | 100 mm |
| Length (inches) | 3.937 inch |
| Net weight | 80 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity at operating temperature | 0...95 % (no condensation) |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6a722fc5-2d22-41b4-9544-5b95e45a4b77 |
| Input frequency | 48Hz…63Hz |
| Input voltage | 400V AC (L-L) ±15% |
| Number of outputs | 1 |
| Alarm function |
Phase error
Phase sequence as per factory setting |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 30 V |
| Number of digital outputs | 1 |
| Rated switching current | 3 A |
| Type | Relay, 1 CO contact |
| Configuration | none |
| Galvanic isolation | between input ⁄ output ⁄ supply ⁄ relay |
| Nominal power consumption | 1.5 VA |
| Operating altitude | ≤ 2000 m |
| Protection degree | IP20 |
| Step response time | ≤ 200 ms (10…90%) |
| Temperature coefficient |
≤ 250 ppm/K of final value
± 250 ppm/K 350 ppm/K |
| Voltage supply | supplied from voltage measurement inputs |
| EMC standards |
IEC 61000-6-2
IEC 61000-6-4 EN 61326 |
| Galvanic isolation | between input ⁄ output ⁄ supply ⁄ relay |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Insulation voltage | 2 kV input / output / power supply |
| Pollution severity | 2 |
| Rated voltage | 300 V ACrms |
| Surge voltage category | III |
| Type of connection | Screw connection |
| Tightening torque, min. | 0.4 Nm |
| Tightening torque, max. | 0.6 Nm |
| Clamping range, rated connection | 2 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 14 |
| Approval/Certificate/Document of Conformity | |
| Engineering Data | |
| CADENAS eCATALOG | |
| User Documentation | |
| Catalogues |
| ETIM 6.0 | EC002654 |
| ETIM 7.0 | EC002654 |
| ETIM 8.0 | EC002654 |
| ETIM 9.0 | EC002654 |
| ECLASS 9.0 | 27-21-01-22 |
| ECLASS 9.1 | 27-21-01-22 |
| ECLASS 10.0 | 27-21-01-22 |
| ECLASS 11.0 | 27-21-01-22 |
| ECLASS 12.0 | 27-21-01-22 |
| ECLASS 13.0 | 27-21-01-22 |
| ECLASS 14.0 | 27-21-01-22 |
| Approvals |  |
| ROHS | Conform |
-
