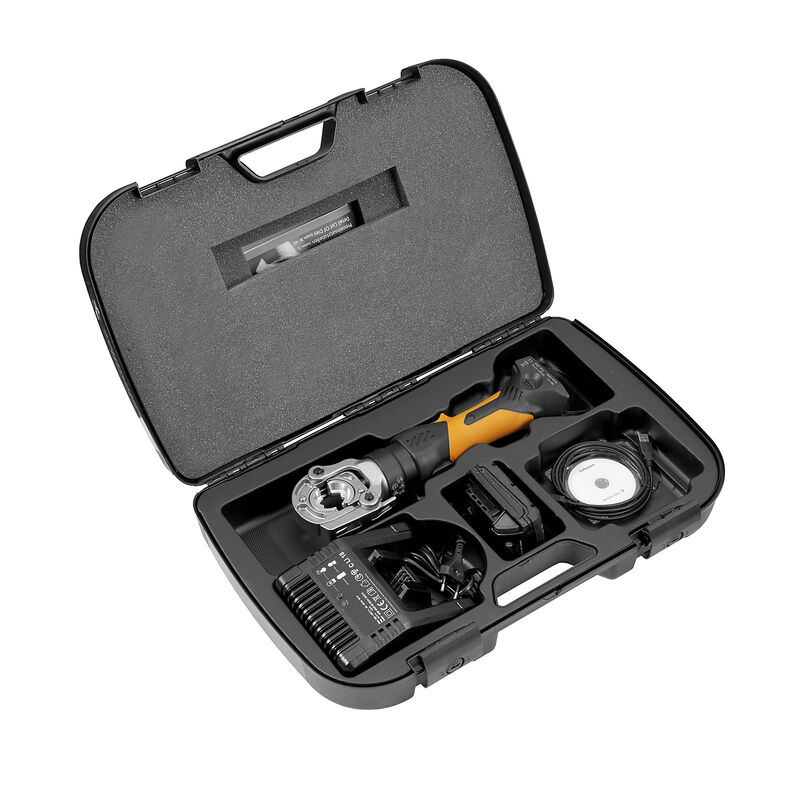

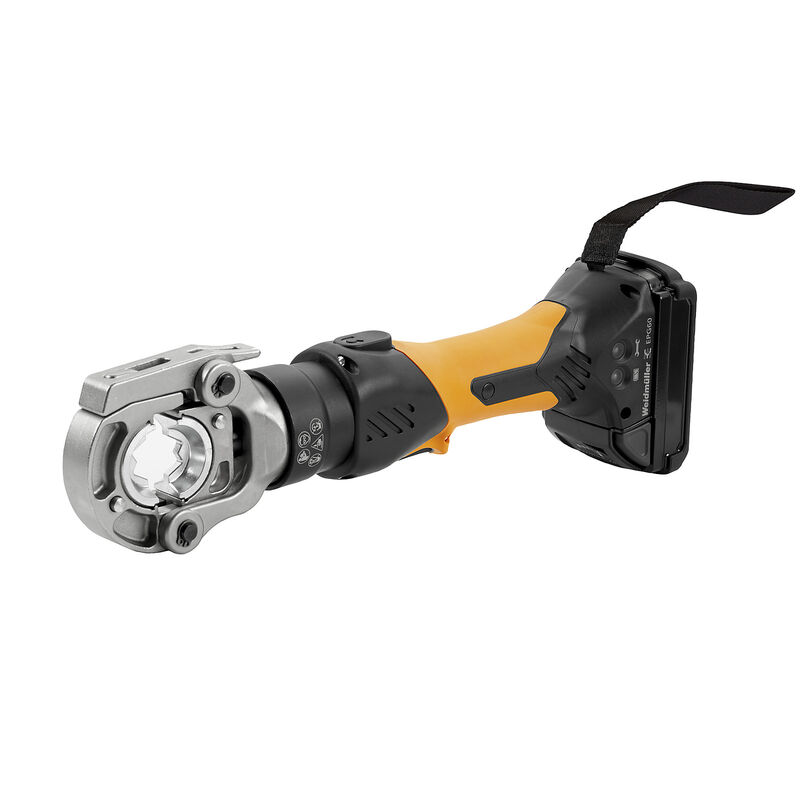

EPG 60

Pressing tools, Tools, Pressing tool, 6mm², 300mm², Hexagonal crimp, WM crimp, Indent crimp, Trapezoidal crimp, Oval crimping

Item No. 2453810000

Properties

General ordering data

Version	Pressing tools, Tools, Pressing tool, 6mm², 300mm², Hexagonal crimp, WM crimp, Indent crimp, Trapezoidal crimp, Oval crimping
Order No.	2453810000
Type	EPG 60
GTIN (EAN)	4050118468434
Qty.	1 items

Dimensions and weights

Depth	70 mm
Depth (inches)	2.756 inch
Height	355 mm
Height (inches)	13.976 inch
Width	100 mm
Width (inches)	3.937 inch
Net weight	3,300 g

Environmental Product Compliance

RoHS Compliance Status	Compliant
REACH SVHC	Lead 7439-92-1
SCIP	2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Charging time	0.5 h
Description of article	Crimping tool 6 - 300 mm²
Operating voltage	18 V
Pressing force	nominal: 60 kN
Version	Accumulator-hydraulic

Description of contact

Crimping range, max.	300 mm²
Crimping range, min.	6 mm²

tool data crimping

Crimping type/profile	Hexagonal crimp WM crimp Indent crimp Trapezoidal crimp Oval crimping
Deviation	16 mm
Drive	Electro-hydraulic
Wire end ferrules cross-section, max.	300 mm²
Wire end ferrules cross-section, min.	6 mm²

Downloads

User Documentation	[Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101190)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000168
ETIM 7.0	EC000168
ETIM 8.0	EC000168
ETIM 9.0	EC000168
ETIM 10.0	EC000168
ECLASS 9.0	21-04-38-11
ECLASS 9.1	21-04-38-11
ECLASS 10.0	21-04-38-11
ECLASS 11.0	21-04-38-11
ECLASS 12.0	21-04-38-11
ECLASS 13.0	21-04-38-11
ECLASS 14.0	21-04-38-11
ECLASS 15.0	21-04-38-11

Approvals

Approvals	![CE](/picture/CE.gif)
ROHS	Conform

Accessories
