Properties

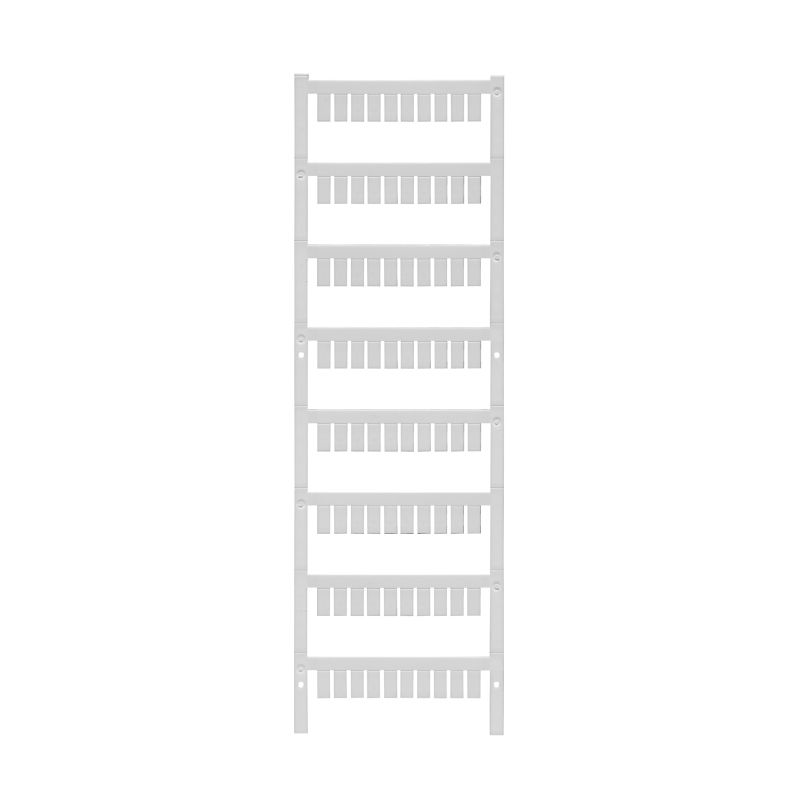

| Version | ESG, Device markers x 10 mm, PA 66, Colour: white, pluggable |
| Order No. | 1919940000 |
| Type | ESG 5/10 MC NE WS |
| GTIN (EAN) | 4032248557714 |
| Qty. | 400 items |
| Depth | 0.8 mm |
| Depth (inches) | 0.031 inch |
| Height | 5 mm |
| Height (inches) | 0.197 inch |
| Width | 10 mm |
| Width (inches) | 0.394 inch |
| Net weight | 0.23 g |
| Operating temperature range | -40...100 °C |
| Application/manufacturer |
Beckhoff
Turck SAI distributor |
| Colour | white |
| Halogen | No |
| Material | PA 66 |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Version | pluggable |
| Width | 10 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64865) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1919940000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1919940000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1919940000&norm=0) |
| Product Change Notification |
[Technical change to MultiCard material - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_102023)
[Technical change to MultiCard material - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102024) [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
