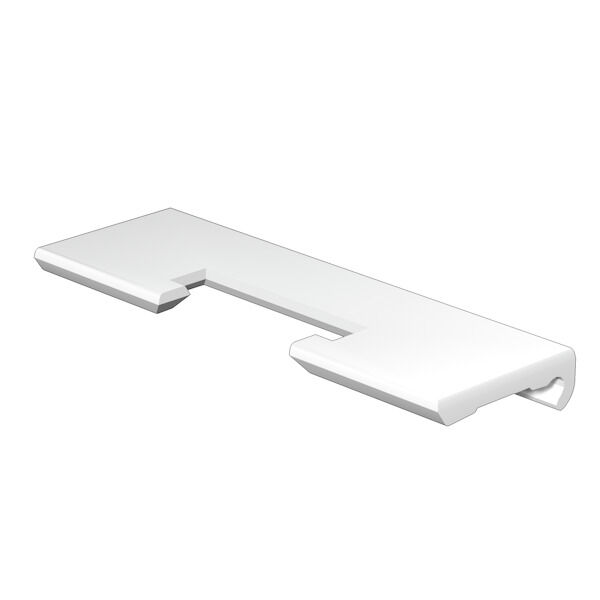

ESG 6.6/20 BHZ 5.00 SDR

ESG, Device markers x 20 mm, PA 66, Colour: To customer specification

Item No. 1221520000

Properties

General ordering data

Version	ESG, Device markers x 20 mm, PA 66, Colour: To customer specification
Order No.	1221520000
Type	ESG 6.6/20 BHZ 5.00 SDR
GTIN (EAN)	4050118005066
Qty.	40 items

Dimensions and weights

Depth	0.8 mm
Depth (inches)	0.031 inch
Height	6.6 mm
Height (inches)	0.26 inch
Width	20 mm
Width (inches)	0.787 inch
Net weight	0.33 g

Temperatures

Operating temperature range

-40...100 °C

General data

Application/manufacturer	BHZ ACT 20
Colour	To customer specification
Halogen	No
Material	PA 66
Number of markers per combination	1 MultiCard = Device markers
Number of markers per packaging unit	Form of supply: MultiCard
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Printed characters	Based on customer requirements (Please send M-Print PRO file)
Printing method	MC Laser
UL 94 flammability rating	V-2
Width	20 mm

Device markers

Halogen

Downloads

Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1221520000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1221520000&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001288
ETIM 7.0	EC001288
ETIM 8.0	EC001288
ETIM 9.0	EC001288
ECLASS 9.0	27-40-06-29
ECLASS 9.1	27-40-06-29
ECLASS 10.0	27-40-06-29
ECLASS 11.0	27-28-11-04
ECLASS 12.0	27-28-11-04
ECLASS 13.0	27-28-11-04

Approvals

ROHS

Conform
