ESG 6.6/20 BHZ 5.00/04

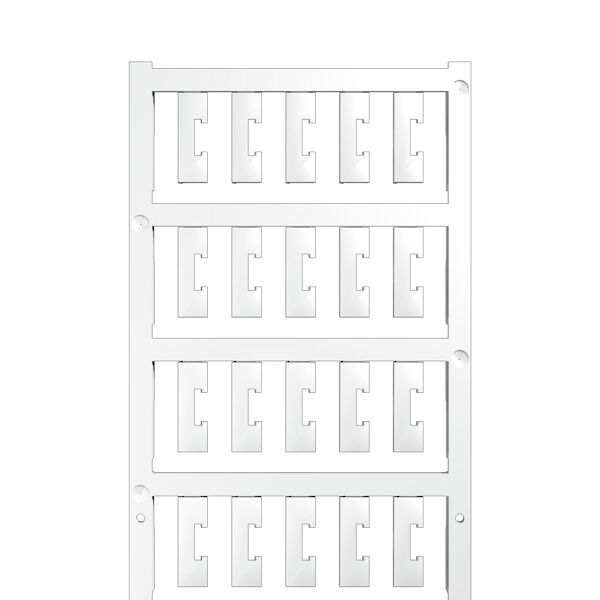

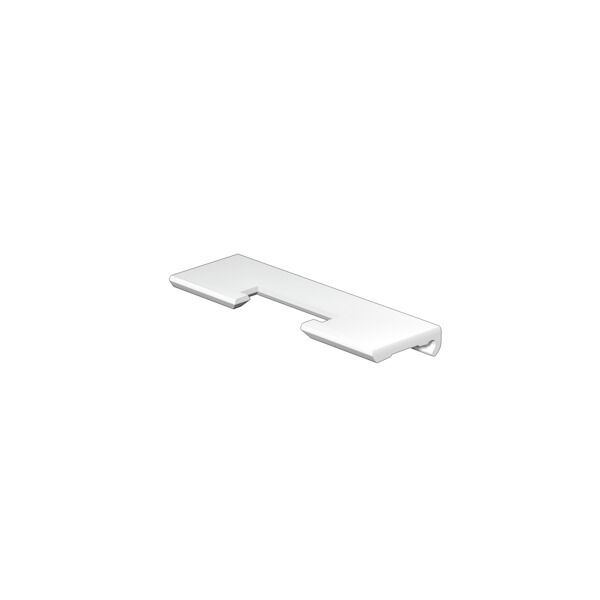

ESG, Device markers x 20 mm, PA 66, Colour: white

Item No. 1082540000

Properties

General ordering data

Version	ESG, Device markers x 20 mm, PA 66, Colour: white
Order No.	1082540000
Type	ESG 6.6/20 BHZ 5.00/04
GTIN (EAN)	4032248845439
Qty.	200 items

Dimensions and weights

Depth	0.8 mm
Depth (inches)	0.031 inch
Height	6.6 mm
Height (inches)	0.26 inch
Width	20 mm
Width (inches)	0.787 inch
Net weight	0.484 g

Temperatures

Operating temperature range

-40...100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

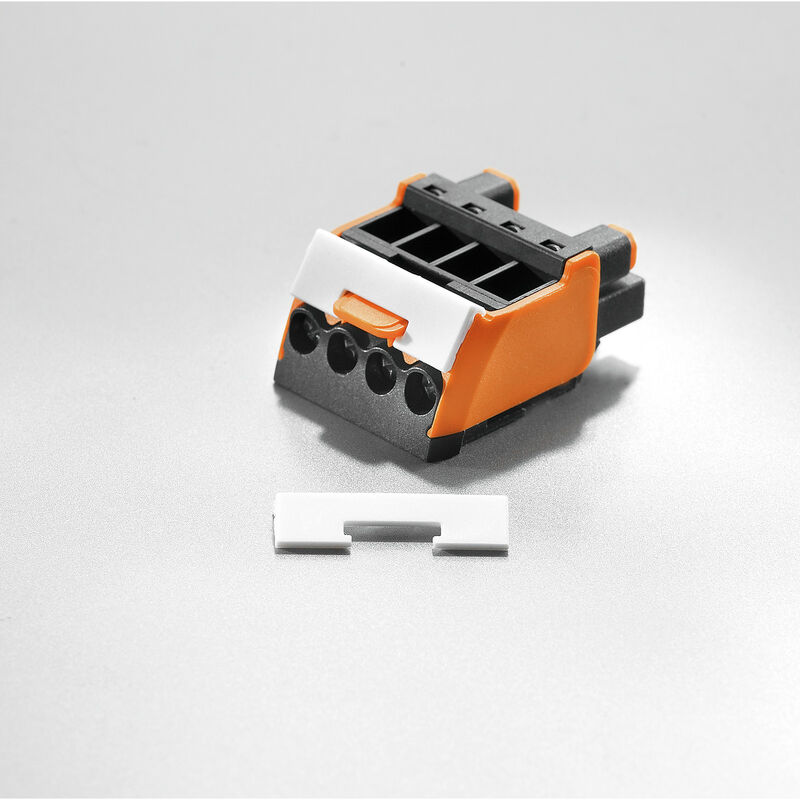

Application/manufacturer	BHZ ACT 20
Colour	white
compatible printer	[PRINTJET CONNECT](~/p/2715590000)
Halogen	No
Material	PA 66
Number of markers per combination	1 MultiCard = Device markers
Number of markers per packaging unit	Form of supply: MultiCard
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
UL 94 flammability rating	V-2
Width	20 mm

Device markers

Halogen

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60337)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1082540000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1082540000)
Product Change Notification	[MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001288
ETIM 7.0	EC001288
ETIM 8.0	EC001288
ETIM 9.0	EC001288
ECLASS 9.0	27-40-06-29
ECLASS 9.1	27-40-06-29
ECLASS 10.0	27-40-06-29
ECLASS 11.0	27-28-11-04
ECLASS 12.0	27-28-11-04
ECLASS 13.0	27-28-11-04
ECLASS 14.0	27-28-11-04

Approvals

ROHS

Conform
