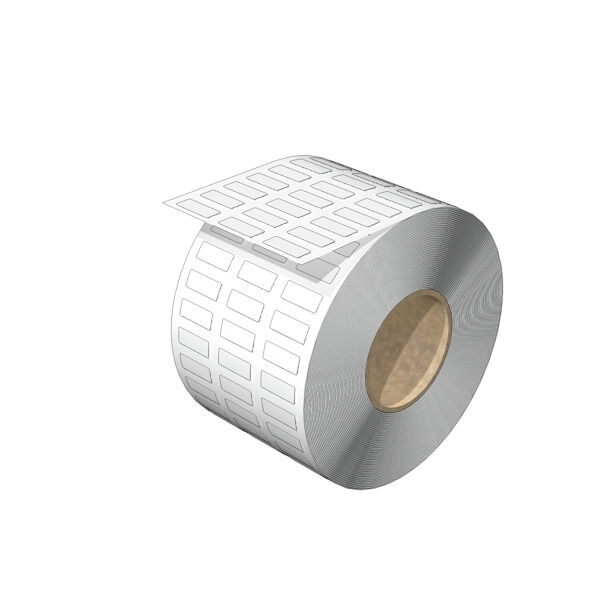

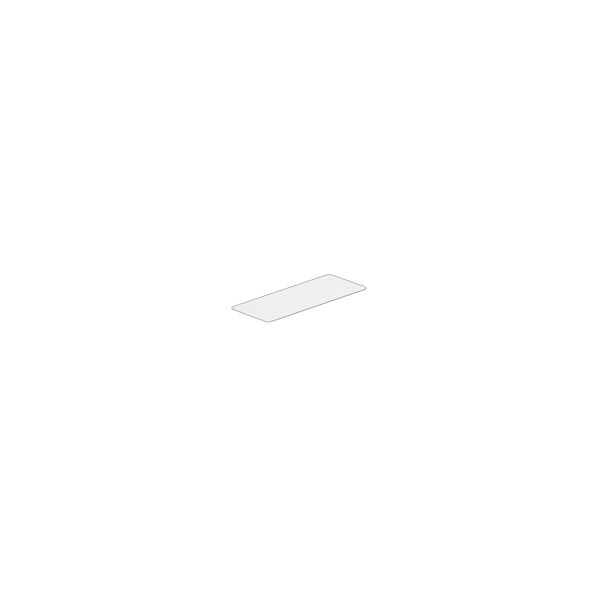

ESG 6/15 MM WS

ESG, Device markers, 6 x 15 mm, white

Item No. 2619940000

Properties

General ordering data

Version	ESG, Device markers, 6 x 15 mm, white
Order No.	2619940000
Type	ESG 6/15 MM WS
GTIN (EAN)	4050118626148
Qty.	3,000 items

Dimensions and weights

Depth	0.1 mm
Depth (inches)	0.004 inch
Height	6 mm
Height (inches)	0.236 inch
Width	15 mm
Width (inches)	0.591 inch
Net weight	0.033 g

Temperatures

Operating temperature range

-40...120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Adhesive	Acrylate adhesive
Approval acc. to UL 969	Yes
Colour	white
compatible printer	[THM MULTIMARK](~/p/2599430000) [THM MULTIMARK PLUS](~/p/2599440000)
Halogen	No
Material	Polyester
Number per roll	3000
Operating temperature range	-40...120 °C
Operating temperature range, max.	120 °C
Operating temperature range, min.	-40 °C
Size of labelling field	6 x 15 mm
UL 94 flammability rating	V-0
Version	Self-adhesive halogen-free
Width	15 mm

Device markers

Halogen

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205596)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2619940000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2619940000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001288
ETIM 7.0	EC001288
ETIM 8.0	EC001288
ETIM 9.0	EC001288
ECLASS 9.0	27-40-06-29
ECLASS 9.1	27-40-06-29
ECLASS 10.0	27-40-06-29
ECLASS 11.0	27-28-11-04
ECLASS 12.0	27-28-11-04
ECLASS 13.0	27-28-11-04
ECLASS 14.0	27-28-11-04

Approvals

ROHS

Conform
