FP TERMINAL LG MPB

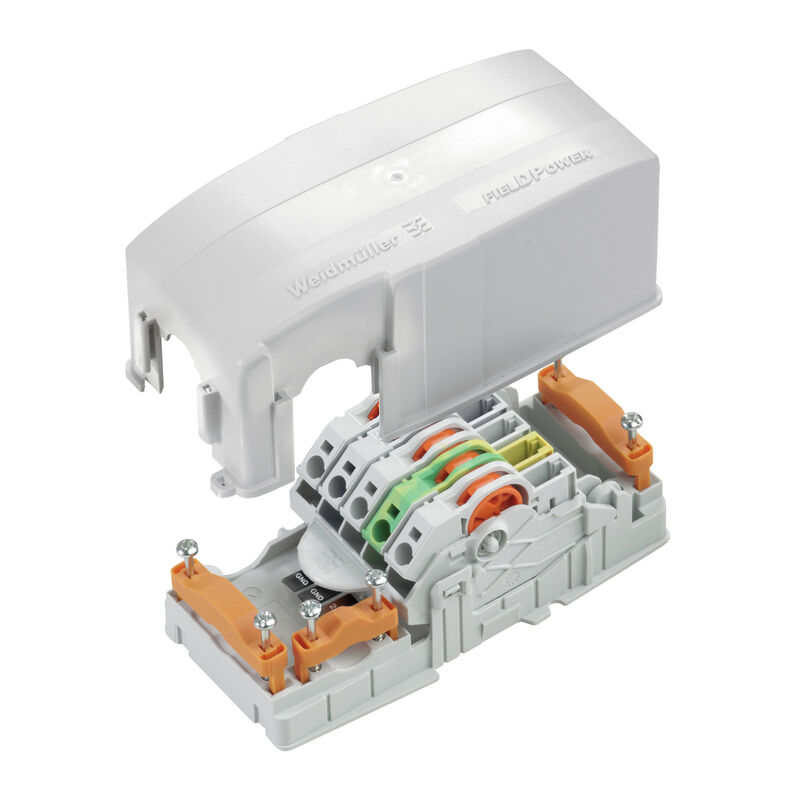

FieldPower® Box, IP20, in complete state, Polycarbonate, Insulation displacement connection (IDC), PUSH IN

Item No. 1206530000

Properties

General ordering data

Version	FieldPower® Box, IP20, in complete state, Polycarbonate, Insulation displacement connection (IDC), PUSH IN
Order No.	1206530000
Type	FP TERMINAL LG MPB
GTIN (EAN)	4032248988150
Qty.	1 items

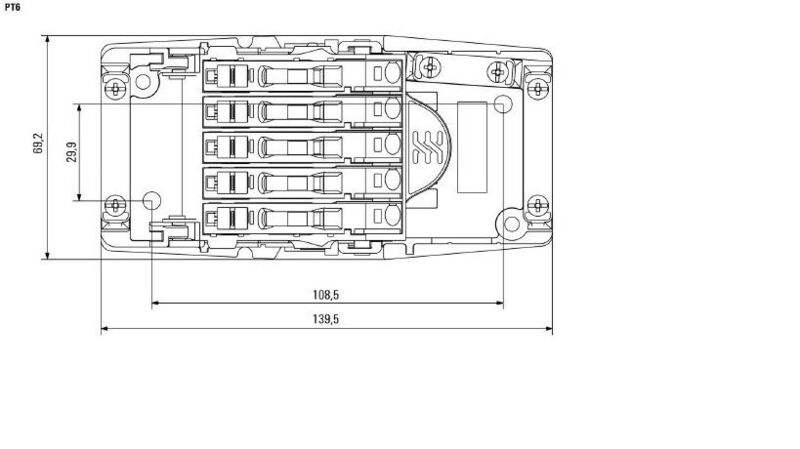

Dimensions and weights

Depth	59 mm
Depth (inches)	2.323 inch
Height	159 mm
Height (inches)	6.26 inch
Width	75 mm
Width (inches)	2.953 inch
Net weight	250.8 g

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Clamping capacity

Connection data - contact element power bus

Wire connection method:

Insulation displacement connection (IDC)
Blade size of operating tool:

0.6 x 3.5 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

6 mm²
Conductor connection cross-section, solid, min.:

1.5 mm²
Conductor connection cross-section, stranded, max.:

6 mm²
Conductor connection cross-section, stranded, min.:

2.5 mm²
Conductor connection cross-section, finely stranded, max.:

6 mm²
Conductor connection cross-section, finely stranded, min.:

2.5 mm²
Conductor connection cross-section, finest stranded, max.:

6 mm²
Conductor connection cross-section, finest stranded, min.:

2.5 mm²

Connection data - contact element Branch / Feed-in

Wire connection method:

PUSH IN
Blade size of operating tool:

0.6 x 3.5 mm
Stripping length:

14 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

6 mm²
Conductor connection cross-section, solid, min.:

0.5 mm²
Conductor connection cross-section, stranded, max.:

6 mm²
Conductor connection cross-section, stranded, min.:

0.5 mm²
Conductor connection cross-section, finely stranded, max.:

10 mm²
Conductor connection cross-section, finely stranded, min.:

0.5 mm²
Conductor connection cross-section, finest stranded, max.:

6 mm²
Conductor connection cross-section, finest stranded, min.:

0.5 mm²
Conductor connection cross-section with wire end ferrule:
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²
- Type of wire end ferrule:

  Twin wire-end ferrules
- Cross-section, min.:

  0.5 mm²
- Cross-section, max.:

  6 mm²

Material	Polycarbonate
Insulating material	Polycarbonate
Enclosure material	Polycarbonate
Silicone	No
Colour	beige
Protection degree	IP20 in complete state
UL 94 flammability rating	V-0
Lid attachment	plugged
lockable	No
Type of mounting	Screw mounting
Can be coded	Yes
Number of poles	5
Number of connections / pole	1
Wire connection method	Insulation displacement connection (IDC) PUSH IN

Rated data acc. to IEC

Rated data acc. to IEC for contact element

Standard:

IEC 60947-7-1, IEC 60947-7-2
Rated voltage:

800 V
Rated impulse withstand voltage:

8 kV
Rated current (3 loaded poles):

41 A
Rated current (4 loaded poles):

25 A

Rated data acc. to UL

Rated data acc. to UL for contact element	Standard: UL 1059 Note: for use with UL-listed TC-ER cables Conductor connection cross-section, AWG, max.: AWG 10 Conductor connection cross-section, AWG, min.: AWG 14 Rated voltage: 600 V Rated current: 30 A
Standards	not UL approved

Approval/Certificate/Document of Conformity	[Manufacturer's Declaration FieldPower® BOX, BOX FUSE and Terminal variants](https://mdcop.weidmueller.com/mediadelivery/asset/900_42270)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_93838)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1206530000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000214
ETIM 7.0	EC000214
ETIM 8.0	EC000214
ETIM 9.0	EC000214
ECLASS 9.0	27-14-24-09
ECLASS 9.1	27-14-24-09
ECLASS 10.0	27-14-24-09
ECLASS 11.0	27-14-24-09
ECLASS 12.0	27-14-24-09
ECLASS 13.0	27-14-24-09
ECLASS 14.0	27-14-24-09

ROHS

Conform
