Properties

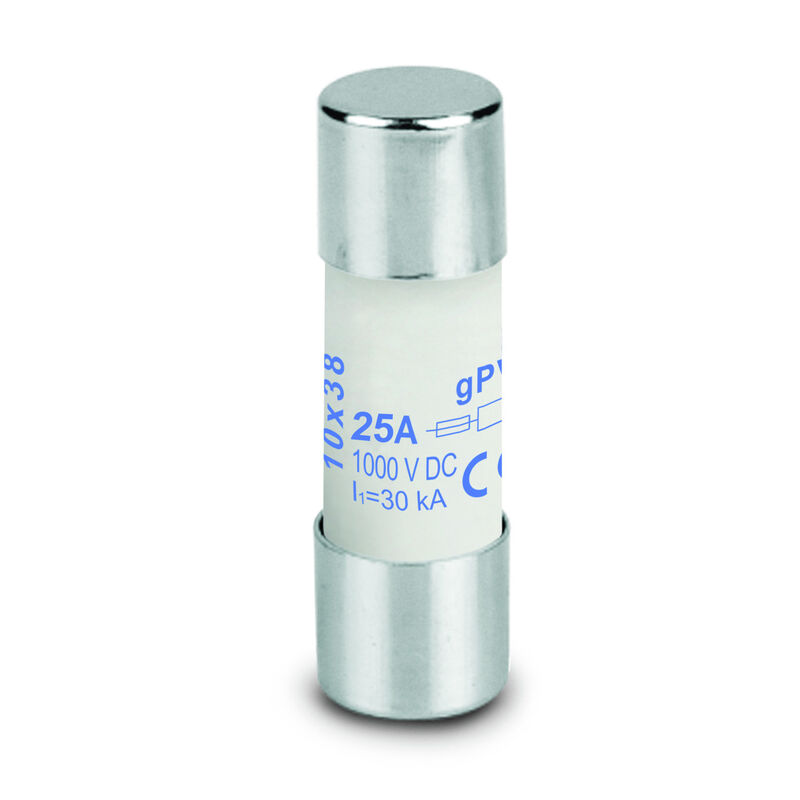

| Version | Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 25 A inline fuse |
| Order No. | 2827990000 |
| Type | FUSE 10X38 25A 1000 VDC GPV S |
| GTIN (EAN) | 4064675367819 |
| Qty. | 10 items |
| Height | 38 mm |
| Height (inches) | 1.496 inch |
| Width | 10 mm |
| Width (inches) | 0.394 inch |
| Diameter | 10.3 mm |
| Net weight | 10.6 g |
| Storage temperature | -40°C ... 90°C |
| Operating temperature range | -40°C ... 80°C |
| Fuse-link standard |
IEC 60269-1
IEC 60269-6 gPV (EN 60269-6) |
| Current | 25 A |
| Rated DC voltage | 1,000 V |
| Rated breaking capacity | 10 kA |
| Contact material | silver-plated |
| Power dissapation, max. | 3.5 W |
| Approval/Certificate/Document of Conformity | [CE-Declaration_10x38_gPV_Fuses](https://mdcop.weidmueller.com/mediadelivery/asset/900_306923) |
| Technical Documentation |
[Chracteristic for 10x38 gPV Fuses](https://mdcop.weidmueller.com/mediadelivery/asset/900_273967)
[Chracteristic for 10x38 gPV Fuses](https://mdcop.weidmueller.com/mediadelivery/asset/900_273968) [Chracteristic for 10x38 gPV Fuses](https://mdcop.weidmueller.com/mediadelivery/asset/900_273969) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ROHS | Conform |
Is accessory of
-
Item No.:7940111904Packaging unit:1 PC
Photovoltaics, Fuse component, Fuse isolator, Plastic cover, 10x38, 1000 V
-
Item No.:2827950000Packaging unit:10 PC
Photovoltaics, Fuse holder, 1000 V, 10x38, 1 String, with LED
-
Item No.:2827940000Packaging unit:10 PC
Photovoltaics, Fuse holder, 1000 V, 10x38, 1 String, Without LED
-
Item No.:2896950000Packaging unit:5 PC
Photovoltaics, Fuse holder, 1000 V, 10x38, 2 Strings, with LED
-
Item No.:2896940000Packaging unit:5 PC
Photovoltaics, Fuse holder, 1000 V, 10x38, 2 Strings, Without LED
-
Item No.:2604280000Packaging unit:150 PC
Photovoltaics, Fuse cartridge
