Properties

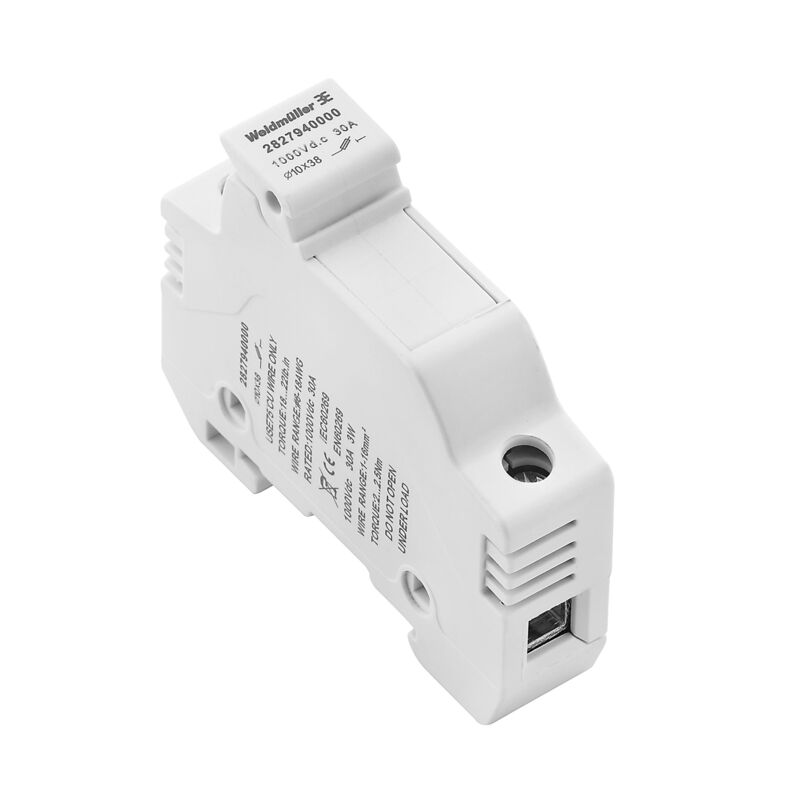

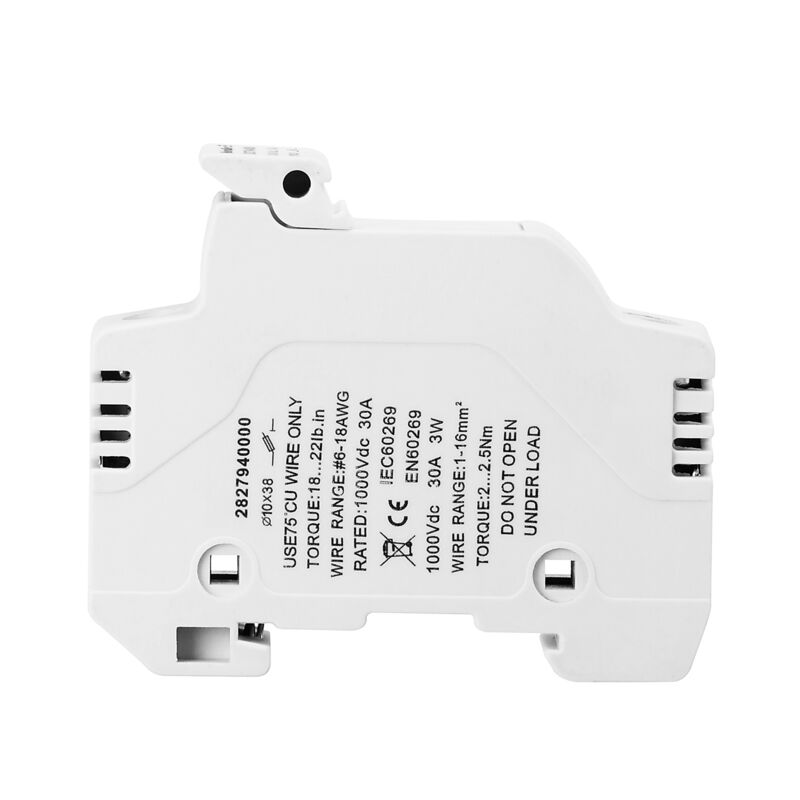

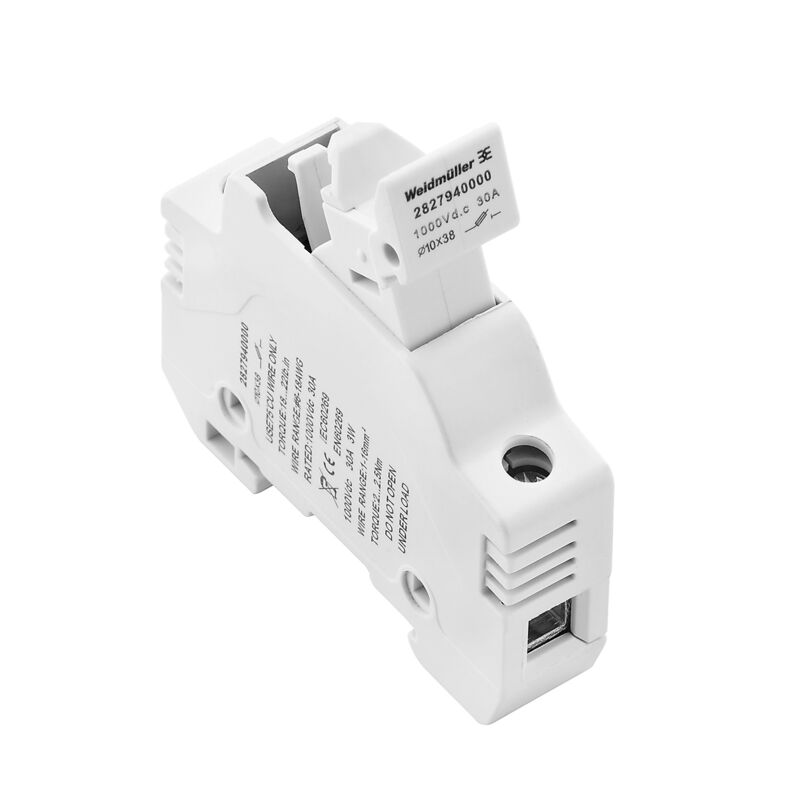

| Version | Photovoltaics, Fuse holder, 1000 V, 10x38, 1 String, Without LED |
| Order No. | 2827940000 |
| Type | FUSEHOLDER WSFH 10X38 1KV |
| GTIN (EAN) | 4064675367666 |
| Qty. | 10 items |
| Depth | 61 mm |
| Depth (inches) | 2.402 inch |
| Height | 73 mm |
| Height (inches) | 2.874 inch |
| Width | 18 mm |
| Width (inches) | 0.709 inch |
| Net weight | 10 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 90 °C |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Tightening torque, max. | 2.5 Nm |
| Tightening torque, min. | 2 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 17 |
| Wire connection cross section AWG, min. | AWG 6 |
| Wire connection cross section, finely stranded, min. | 1 mm² |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 1 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire material | Copper |
| Type of mounting | Rail |
| Cartridge fuse | 10 x 38 mm |
| Colour | Light Blue |
| Display | Without LED |
| Fuse holder (cartridge holder) | Pivoting |
| Max. current | 30 A |
| Number of potentials | 1 |
| Power dissapation, max. | 3 W |
| Rail | TS 35 |
| Rated impulse withstand voltage | 6 kV |
| Surge voltage category | III |
| Operating voltage, max. | 1000 V |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity for PV fuse holders](https://mdcop.weidmueller.com/mediadelivery/asset/900_306573) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_301852) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| ROHS | Conform |
Accessories
-
Item No.:2783260000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 16 A
-
Item No.:2783170000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 2 A
-
Item No.:2783250000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 15 A
-
Item No.:2783210000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 6 A
-
Item No.:2783280000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 20 A
-
Item No.:2828000000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 30 A
-
Item No.:2783190000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 4 A
-
Item No.:2783160000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 1 A
-
Item No.:2783240000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 12 A
-
Item No.:2783180000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 3 A
-
Item No.:2783220000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 8 A
-
Item No.:2783230000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 10 A
-
Item No.:2827990000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 25 A inline fuse
-
Item No.:2783200000Packaging unit:10 PC
Photovoltaics, Cartridge fuse, 1000 V, 10x38, gPV, 5 A
