G-3L-210/10 C

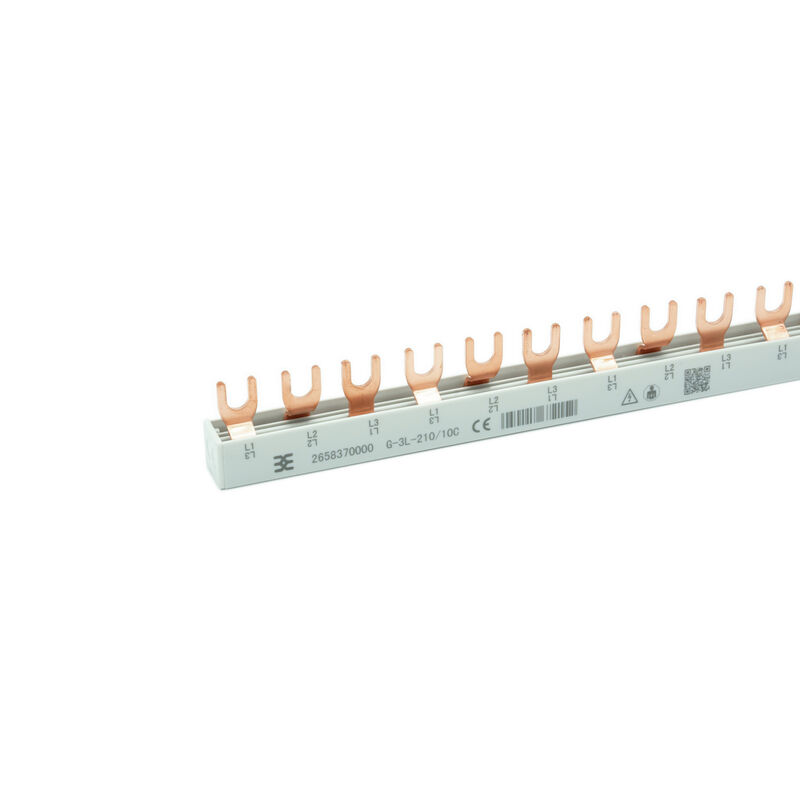

Product image
G-3L-210/10 C

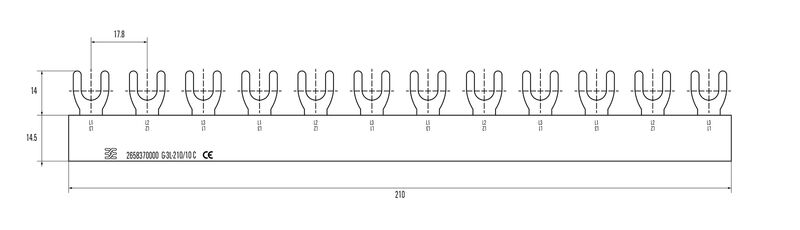

Drawing
G-3L-210/10 C

G-3L-210/10 C

Dette produkt er ikke længere tilgængeligt.

Phase busbar (Terminals), 63, Number of poles: 12, Insulated: Yes, 10

Produkt ID 2658370000
Download datablad Engineering-support Produktdownloads
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Údaje materiálu Additional technical data Rozměry General Rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Phase busbar (Terminals), 63, Number of poles: 12, Insulated: Yes, 10
Order No.
2658370000
Type
G-3L-210/10 C
GTIN (EAN)
4050118672152
Qty.
20 Styk
Lieferstatus
Retirado
Dernière date de commande
/Date(1748728800000)/

Dimensions and weights

Depth
15,4 mm
Depth (inches)
0,606 inch
Height
31 mm
Height (inches)
1,22 inch
Width
210 mm
Šířka (v palcích)
8,268 inch
Peso netto
81 g

Temperatures

Temperatura ambiente
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Údaje materiálu

Colour
Šedá

Additional technical data

Explosion-tested version
No

Rozměry

Pitch in mm (P)
17,8 mm

General

Number of poles
12

Rating data

定格断面
10 mm²
Rated voltage
400 V
Jmenovitý proud
63 A

Classifications

ETIM 8.0
EC000215
ETIM 9.0
EC000215
ETIM 10.0
EC000215
ECLASS 14.0
27-37-13-06
ECLASS 15.0
27-37-13-06
