HDC 06B DC
HDC 06B DC

HDC 06B DC

Heavy-duty connectors, Accessories, Protective cap

Product ID 1215900000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Allmänna data Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Utförande
Heavy-duty connectors, Accessories, Protective cap
Art.nr.
1215900000
Typ
HDC 06B DC
GTIN (EAN)
4050118000054
Qty.
10 items

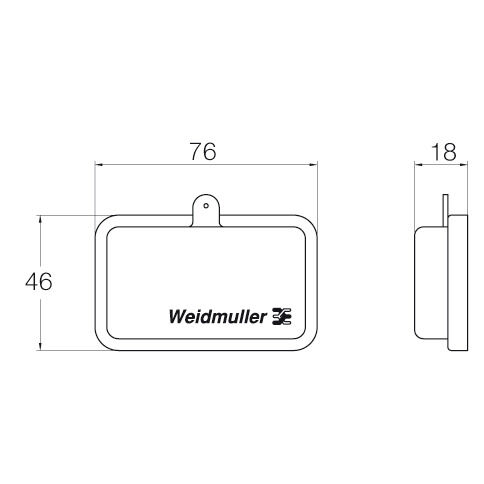

Dimensions and weights

Höjd
18 mm
Height (inches)
0,709 inch
Bredd
46 mm
Width (inches)
1,811 inch
Längd
62 mm
Length (inches)
2,441 inch
Net weight
6,424 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Allmänna data

BG
3
Färgkod
white
Transparent
Grundläggande material
Polypropylene
Installationsstorlek
3
Skyddsklass
IP20

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
