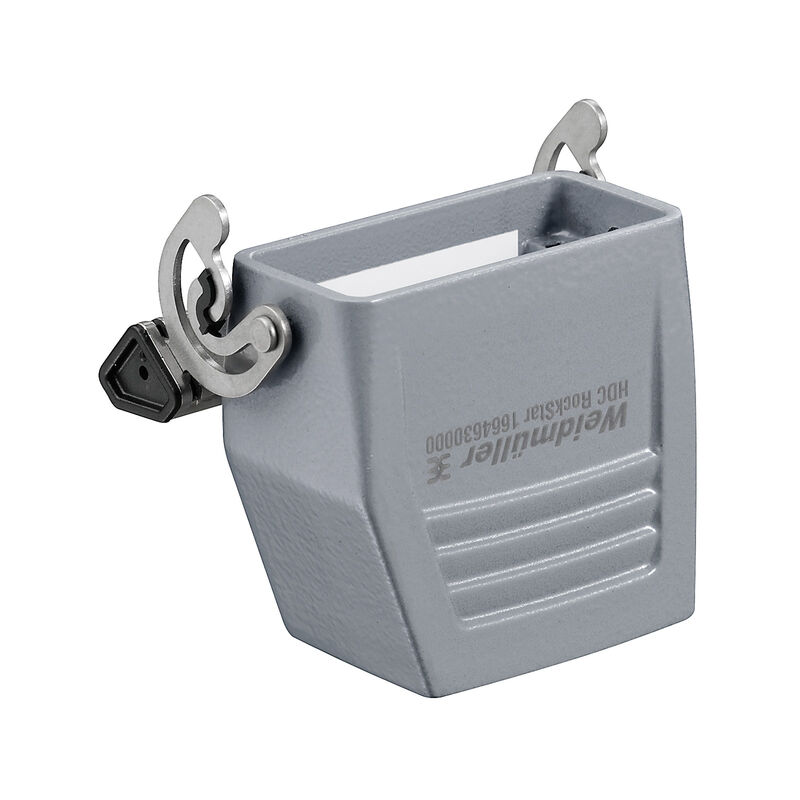

HDC 10A KLU 1PG16G

HDC enclosures, Size: 2, Protection degree: IP65 (in plugged condition), Coupling housing, End-locking clamp, lower side, Standard, Size of cable entries: PG 16

Item No. 1664560000

Properties

General ordering data

Version	HDC enclosures, Size: 2, Protection degree: IP65 (in plugged condition), Coupling housing, End-locking clamp, lower side, Standard, Size of cable entries: PG 16
Order No.	1664560000
Type	HDC 10A KLU 1PG16G
GTIN (EAN)	4008190421250
Qty.	1 items

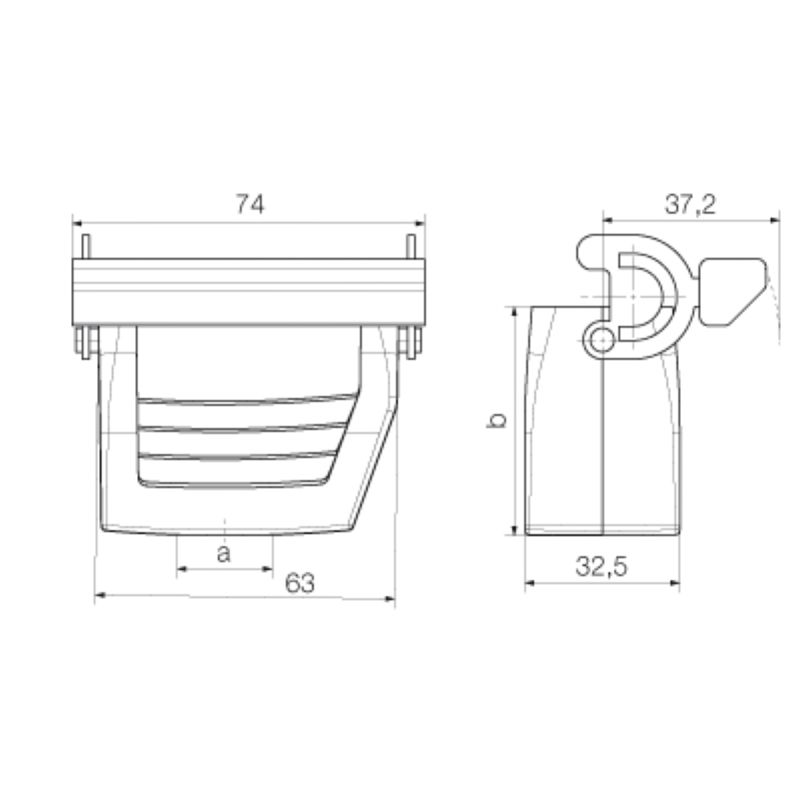

Dimensions and weights

Height	48 mm
Height (inches)	1.89 inch
Width	53.5 mm
Width (inches)	2.106 inch
Net weight	129 g

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6bI
REACH SVHC	Lead 7439-92-1 Potassium perfluorobutane sulfonate 29420-49-3
SCIP	e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

Cable entry	w. thread
Height of housing B	48 mm
Total length housing	63 mm
Width housing C	29.5 mm

EMC housings	No
Housing main material	diecast aluminium
Material of locking element	Stainless steel, rust-proof
Protection degree	IP65 (in plugged condition)
Surface finish	Powder coating
Tightening torque	0.5 Nm

BG	2
Cable entry	w. thread
Clamp version	End-locking clamp
Colour (RAL)	RAL 7035
Design	Standard
Design of housing	Coupling housing
Design of locking system	End-locking clamp, lower side
Internal thread	PG 16
Number of cable entry on top	1
Number of cable entry sideways	0
Size	2
Size of cable entries	PG 16
Suitable for ModuPlug^®	No
Tightening torque	0.5 Nm
Top part/bottom part/lid	lower part
Type	coupling extension

Approval/Certificate/Document of Conformity	[Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79532)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1664560000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1664560000)
Product Change Notification	[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005) [20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006)
Technical Documentation	[1664560000_HDC_10A_KLU_1PG16G_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39124)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000437
ETIM 7.0	EC000437
ETIM 8.0	EC000437
ETIM 9.0	EC000437
ECLASS 9.0	27-44-02-02
ECLASS 9.1	27-44-02-02
ECLASS 10.0	27-44-02-02
ECLASS 11.0	27-44-02-02
ECLASS 12.0	27-44-02-02
ECLASS 13.0	27-44-02-02
ECLASS 14.0	27-44-02-02

Approvals	![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E92202
