Properties

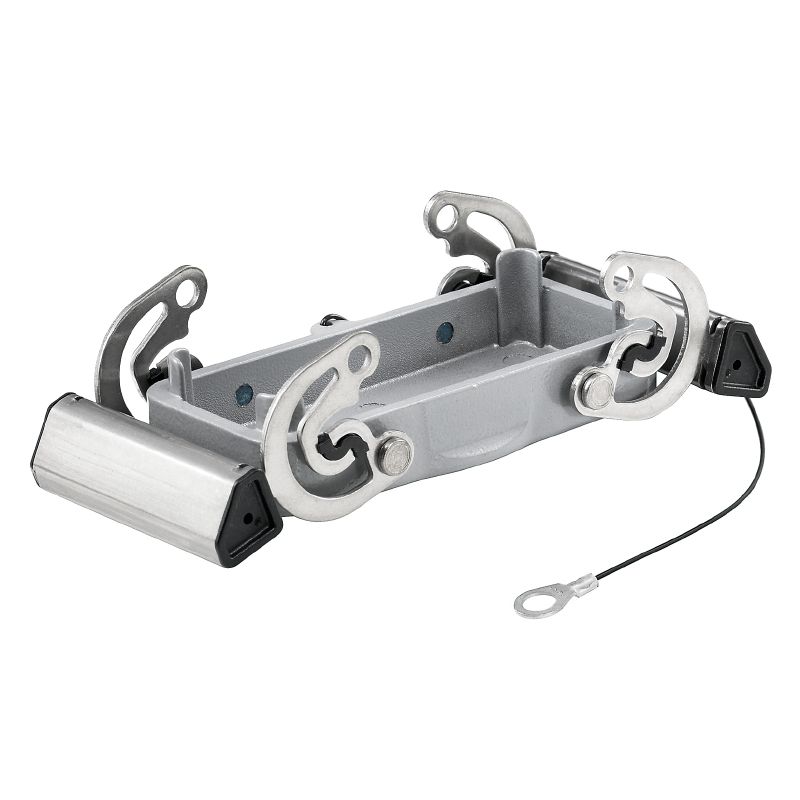

| Version | HDC enclosures, Size: 6, Protection degree: IP65 (in plugged condition), Cover for lower part of housing, Side-locking clamp on upper side, Standard |
| Order No. | 1009090000 |
| Type | HDC 16B DODQ 2QB |
| GTIN (EAN) | 4032248713837 |
| Qty. | 1 items |
| Height | 17 mm |
| Height (inches) | 0.669 inch |
| Width | 55 mm |
| Width (inches) | 2.165 inch |
| Net weight | 150 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | e98b2b24-ba23-41bf-8d19-0dda3647412f |
| Chemical resistance |
|
| Cable entry | For bases |
| Height of housing B | 17 mm |
| Total length housing | 93.3 mm |
| Width housing C | 43 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| BG | 6 |
| Cable entry | For bases |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 7035 |
| Design | Standard |
| Design of housing | Cover for lower part of housing |
| Design of locking system | Side-locking clamp on upper side |
| Size | 6 |
| Suitable for ModuPlug® | Yes |
| Top part/bottom part/lid | Cover |
| Type | Cover |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72756) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1009090000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1009090000) |
