Download data sheet

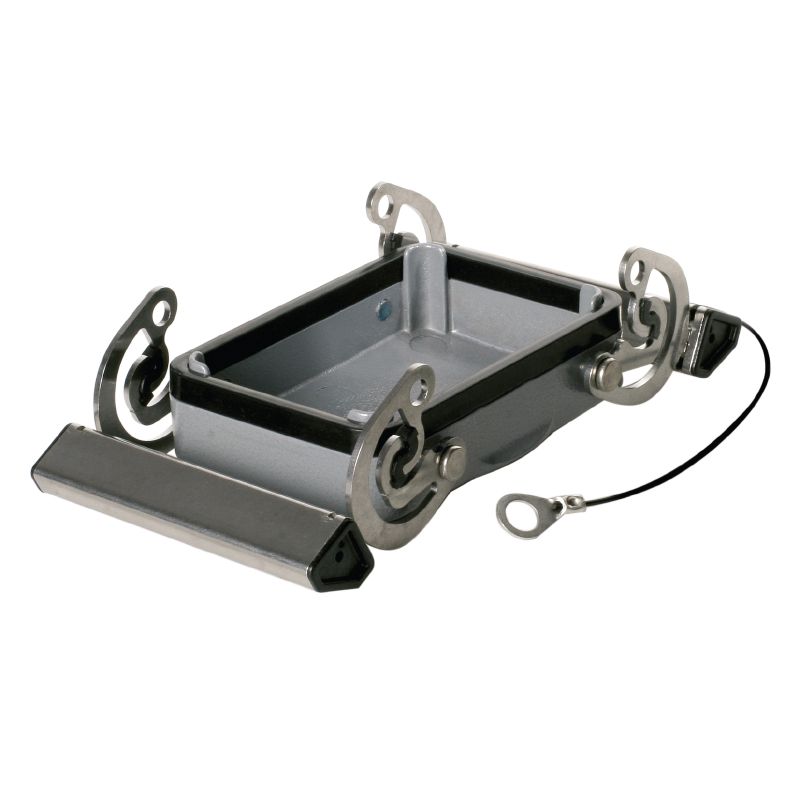

HDC 32A DMDQ 2QB

HDC enclosures, Size: 7, Protection degree: IP65 (in plugged condition), Cover for upper part of housing, Side-locking clamp on lower side, Standard

Item No. 1665930000

Properties

General ordering data

Version	HDC enclosures, Size: 7, Protection degree: IP65 (in plugged condition), Cover for upper part of housing, Side-locking clamp on lower side, Standard
Order No.	1665930000
Type	HDC 32A DMDQ 2QB
GTIN (EAN)	4008190422967
Qty.	1 items

Dimensions and weights

Height	22 mm
Height (inches)	0.866 inch
Width	68 mm
Width (inches)	2.677 inch
Net weight	168 g

Temperatures

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1 Potassium perfluorobutane sulfonate 29420-49-3
SCIP	e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

Dimensions

Cable entry	For hoods
Height of housing B	22 mm
Total length housing	82 mm
Width housing C	56 mm

General data

EMC housings	No
Housing main material	diecast aluminium
Material of locking element	Stainless steel, rust-proof
Protection degree	IP65 (in plugged condition)
Surface finish	Powder coating
Tightening torque	1.2 Nm

Version

BG	7
Cable entry	For hoods
Clamp version	Side-locking clamp
Colour (RAL)	RAL 7035
Design	Standard
Design of housing	Cover for upper part of housing
Design of locking system	Side-locking clamp on lower side
Sealing	NBR
Size	7
Suitable for ModuPlug^®	No
Tightening torque	1.2 Nm
Top part/bottom part/lid	Cover
Type	Cover

Downloads

Approval/Certificate/Document of Conformity	[Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79560)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1665930000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1665930000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1665930000&norm=0)
Product Change Notification	[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005) [20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006)
Technical Documentation	[1665930000_HDC_32A_DMDQ_2QB_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_39080)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000437
ETIM 7.0	EC000437
ETIM 8.0	EC000437
ETIM 9.0	EC000437
ECLASS 9.0	27-44-02-02
ECLASS 9.1	27-44-02-02
ECLASS 10.0	27-44-02-02
ECLASS 11.0	27-44-02-02
ECLASS 12.0	27-44-02-02
ECLASS 13.0	27-44-02-02

Approvals

Approvals	![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E92202
