Properties

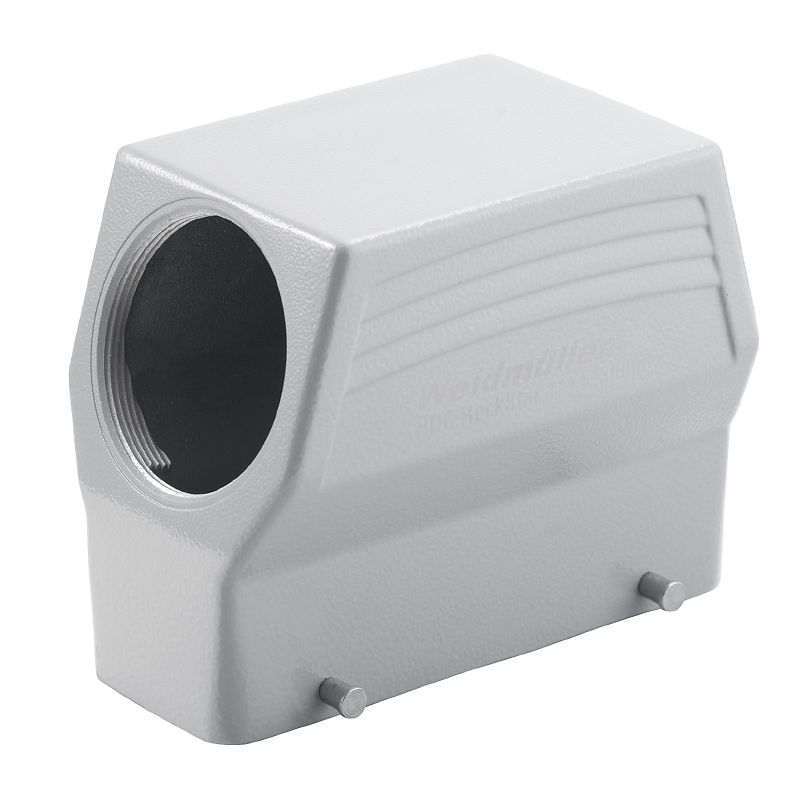

| Version | HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: M 50 |
| Order No. | 1111130000 |
| Type | HDC 64D TSBU 1M50G |
| GTIN (EAN) | 4032248967711 |
| Qty. | 1 items |
| Height | 94 mm |
| Height (inches) | 3.701 inch |
| Width | 65.5 mm |
| Width (inches) | 2.579 inch |
| Net weight | 362.56 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d447edfa-0214-4f34-b5ba-82eae491b46a |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of housing B | 76 mm |
| Hole pitch length A2 | 0 mm |
| Total length housing | 120 mm |
| Width housing C | 43 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| BG | 8 |
| Cable entry | w. thread |
| Colour (RAL) | RAL 7035 |
| Design | high |
| Design of housing |
Cable entry from side
Plug housing |
| Design of locking system | Side-locking clamp on lower side |
| Internal thread | M 50 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Size | 8 |
| Size of cable entries | M 50 |
| Suitable for ModuPlug® | Yes |
| Top part/bottom part/lid | upper part |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97653) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1111130000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1111130000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
