Properties

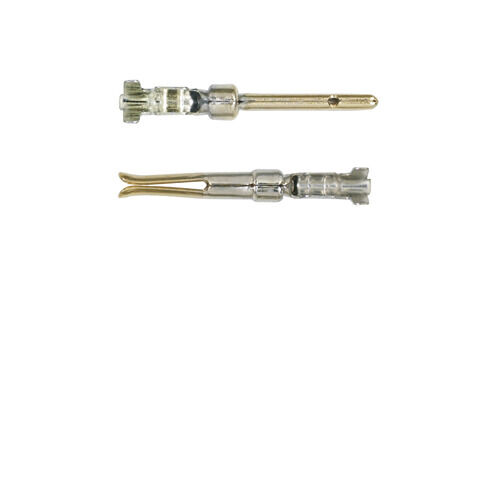

| Version | Heavy-duty connectors, Crimp contact, CM 20, Pin, Conductor cross-section, max.: 0.52, punched, Copper alloy |
| Order No. | 1682440000 |
| Type | HDC-C-M20-SCG0.2-0.52AU |
| GTIN (EAN) | 4008190859947 |
| Qty. | 500 items |
| Net weight | 0.232 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Conductor cross-section, max. | 0.52 mm² |
| Conductor cross-section, min. | 0.2 mm² |
| Contact diameter, male Ø | 1 mm |
| Contact material | Copper alloy |
| Cross-section for connected wire | 0.2 - 0.52 mm² |
| Material | Copper alloy |
| Production methods | punched |
| Stripping length, rated connection | 2.5 mm |
| Surface finish | gold |
| Type | Pin |
| Type of connection | Crimp connection |
| Version insert | CM 20 |
| Volume resistance | ≤5 mΩ |
| Wire connection cross section AWG, max. | AWG 24 |

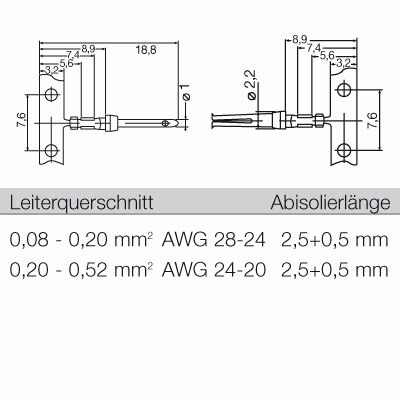

| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205044) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1682440000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-04 |
| ECLASS 9.1 | 27-44-02-04 |
| ECLASS 10.0 | 27-44-02-04 |
| ECLASS 11.0 | 27-44-02-04 |
| ECLASS 12.0 | 27-44-02-04 |
| ECLASS 13.0 | 27-44-02-04 |
| ECLASS 14.0 | 27-44-02-04 |
| ROHS | Conform |
