Properties
| Version | Heavy-duty connectors, HDC insert, ConCept frame |
| Order No. | 1983860000 |

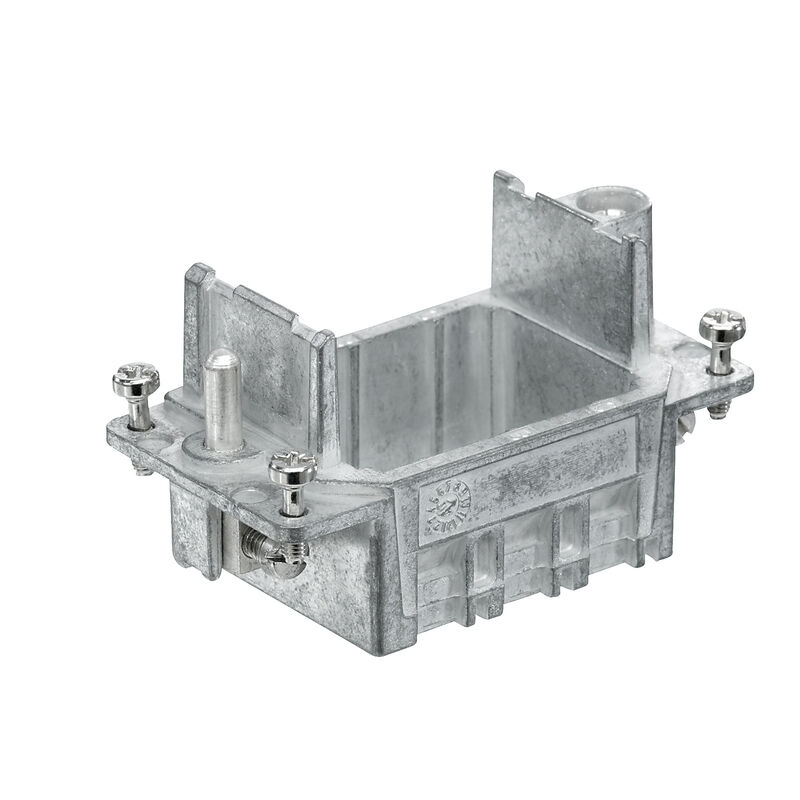

| Type | HDC CFM 10 3F |
| GTIN (EAN) | 4032248688999 |
| Qty. | 1 items |
| Depth | 64 mm |
| Depth (inches) | 2.52 inch |
| 35 mm | |
| Height (inches) | 1.378 inch |
| Width | 34 mm |
| Width (inches) | 1.339 inch |
| Net weight | 76.88 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Silver grey |
| Height of socket | 35 mm |
| Total length base | 64 mm |
| Width | 34 mm |
| BG | 4 |
| Colour | Silver grey |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Diecast zinc |
| Series | ConCept frame |
| Size | 4 |
| Type | Female |
| Connection type PE | Screw connection |
| Tightening torque, max. PE connection | 1.5 Nm |
| Tightening torque, min. PE connection | 0.5 Nm |
| BG | 4 |
| Material | Diecast zinc |
| Size | 4 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205434) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1983860000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (cURus) | E92202 |
