Özellikler
| Version | Heavy-duty connectors, HDC insert, ConCept module |
| Order No. | 1814310000 |

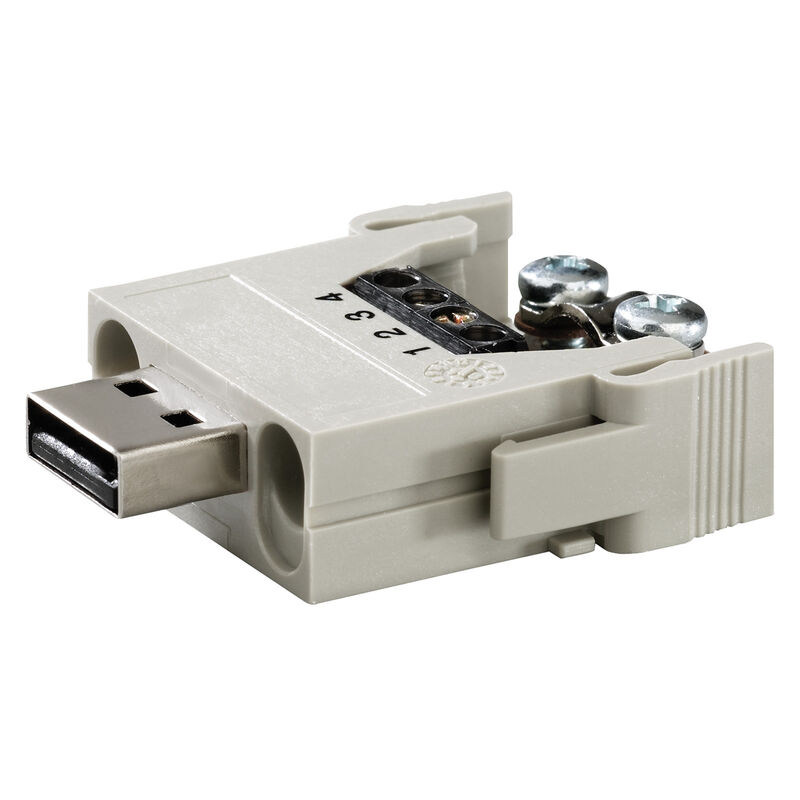

| Type | HDC CM BUS 4SS |
| GTIN (EAN) | 4032248309320 |
| Qty. | 5 adet |
| 43 mm | |
| Height (inches) | 1,693 inch |
| Width | 11,4 mm |
| Width (inches) | 0,449 inch |
| Length | 34 mm |
| Length (inches) | 1,339 inch |
| Net weight | 15,664 g |
| Limit temperature | -20 °C ... 85 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | e98b2b24-ba23-41bf-8d19-0dda3647412f |
| Colour | beige |
| Height of plug | 43 mm |
| Total length base | 34 mm |
| Width | 11,4 mm |
| Colour | beige |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Polycarbonate |
| Number of poles | 4 |
| Rated current (DIN EN 61984) | 1 A |
| Rated impulse voltage (DIN EN 61984) | 0,8 kV |
| Rated voltage (DIN EN 61984) | 32 V |
| Series | ConCept module |
| Type | Pin |
| Type of connection | Screw connection |
| Tightening torque, max. PE connection | 0,6 Nm |
| Tightening torque, min. PE connection | 0,5 Nm |
| Material | Polycarbonate |
| Stripping length, rated connection | 5 mm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 16 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_100900) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1814310000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
