Heavy-duty connectors, HDC insert, ConCept module

Item No. 1983750000
Download data sheet Engineering Support Product Downloads
Related products 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance ConCept Pneumatic module Dimensions General data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version

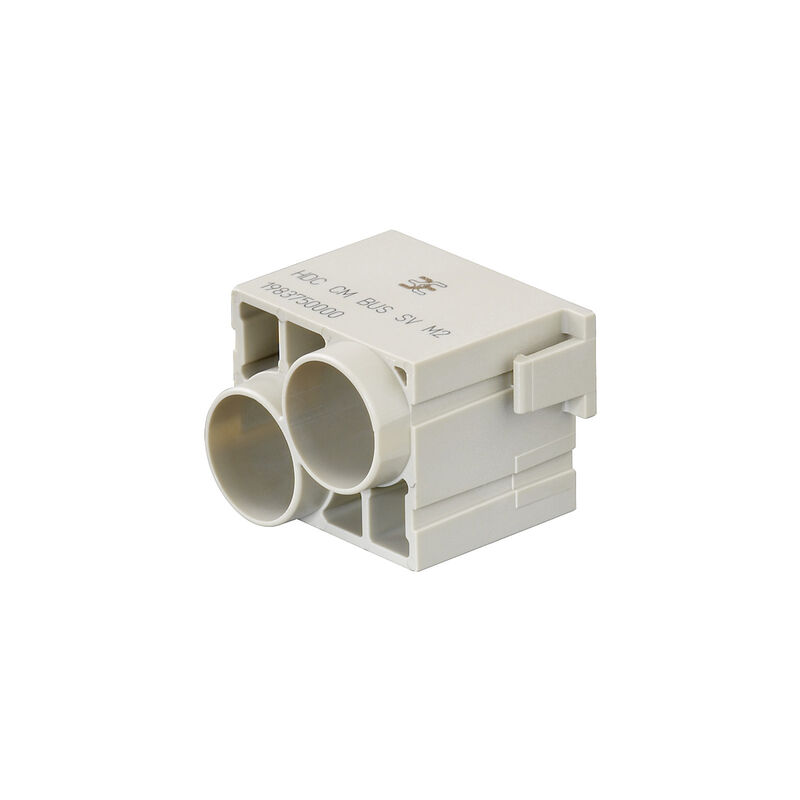

Heavy-duty connectors, HDC insert, ConCept module
Order No.
1983750000
Type
HDC CM BUS SV M2
GTIN (EAN)
4032248688913
Qty.
1  items

Dimensions and weights

Height
28.5  mm
Height (inches)
1.122  inch
Width
22.8  mm
Width (inches)
0.898  inch
Length
34  mm
Length (inches)
1.339  inch
Net weight
0.005  g

Temperatures

Limit temperature
-40 °C ... 70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd

ConCept Pneumatic module

Colour
beige
UL 94 flammability rating
V-0

Dimensions

Height of plug
28.5  mm
Total length base
34  mm
Width
22.8  mm

General data

Colour
beige
Low smoke acc. DIN EN 45545-2
Yes
Material
Polycarbonate
Number of poles
2
Plugging cycles
≥ 500
Rated current (DIN EN 61984)
10  A
Rated voltage (DIN EN 61984)
50  V
Series
ConCept module
Type
Pin
Type of connection
Crimp connection
UL 94 flammability rating
V-0

Version

Material
Polycarbonate
Type of connection
Crimp connection

Classifications

ETIM 6.0
EC002312
ETIM 7.0
EC002312
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-92
ECLASS 9.1
27-44-02-18
ECLASS 10.0
27-44-02-92
ECLASS 11.0
27-44-02-92
ECLASS 12.0
27-44-02-92
ECLASS 13.0
27-44-02-92
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
