HDC-CR24-7S-2 GR

HDC-CR24-7S-2 GR

Heavy-duty connectors, HDC insert, ConCept frame

Ürün No. 1758540000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance ConCept Pneumatic module Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Utförande

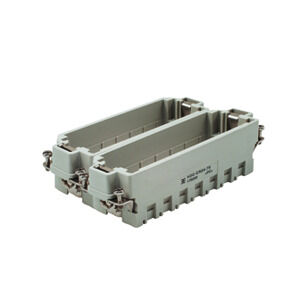

Heavy-duty connectors, HDC insert, ConCept frame
Order No.
1758540000
Type
HDC-CR24-7S-2 GR
GTIN (EAN)
4032248019762
Qty.
5 adet

Dimensions and weights

Djup
111 mm
Depth (inches)
4,37 inch
Height
35 mm
Height (inches)
1,378 inch
Bredd
34 mm
Width (inches)
1,339 inch
Net weight
50,336 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
2f94735a-9fba-4903-842f-4fb9aa902310

ConCept Pneumatic module

Barwny
beige
Klasa palności wg UL 94
V-0

Dimensions

Altura conector
35 mm
Total length base
111 mm
Width
34 mm

General data

Basic material
Polycarbonate
BG
12
Coppia di serraggio
0,5 Nm
Klasa palności wg UL 94
V-0
Liczba biegunów
1
Low smoke acc. DIN EN 45545-2
Yes
Rozmiar instalacji
12
Series
ConCept frame
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Type
Pin
Цветовой код
beige

Connection data PE

Connection type PE
Screw connection
Couple de serrage, max., raccordement PE
1,5 Nm
조임 토크, 최소 PE 결선
1,2 Nm

Version

Basic material
Polycarbonate
BG
12
Installation size
12
Wire connection cross section AWG, max.
AWG 14

Classifications

ETIM 8.0
EC002312
ETIM 9.0
EC002312
ETIM 10.0
EC002312
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
