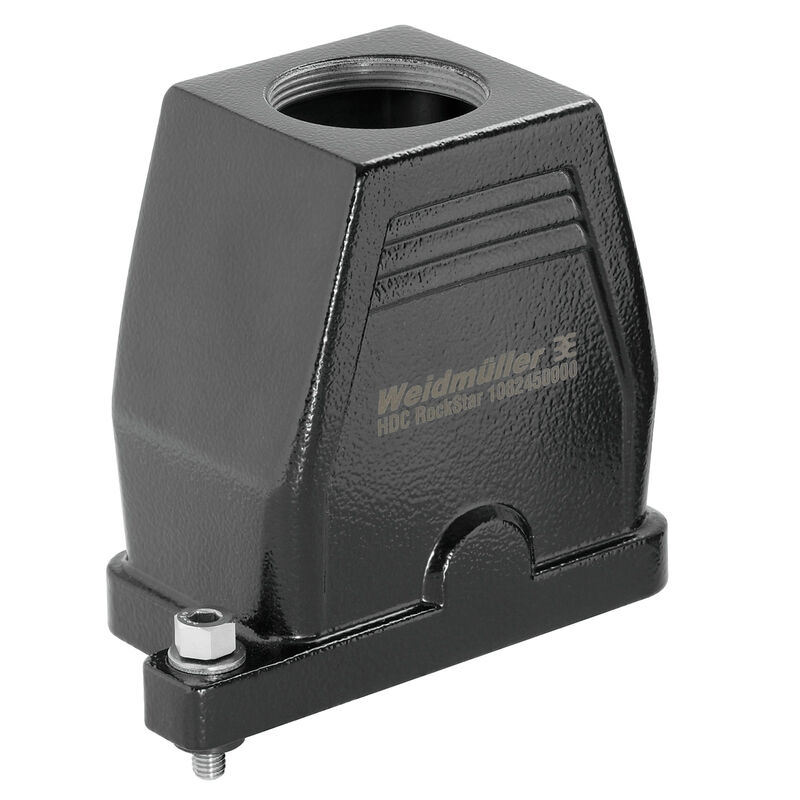

HDC IP68 06B TOS 1M40
HDC IP68 06B TOS 1M40

HDC IP68 06B TOS 1M40

HDC enclosures, Installation size: 3, Protection degree: IP66, IP68, in plugged condition, Plug housing, Clamping yoke connection, Standard, Size of cable entries: M 40

Product ID 1082450000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 4 Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 3, Protection degree: IP66, IP68, in plugged condition, Plug housing, Clamping yoke connection, Standard, Size of cable entries: M 40
Order No.
1082450000
Type
HDC IP68 06B TOS 1M40
GTIN (EAN)
4032248845378
Qty.
1 items

Dimensions and weights

Height
100 mm
Height (inches)
3,937 inch
Width
58 mm
Width (inches)
2,283 inch
Net weight
438 g

Temperatures

Limit temperature
-50 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Unstable
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Unstable
  • Substance:
    Sweat
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Unstable
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Resistant
  • Substance:
    Ozone
  • Chemical resistance:
    Resistant

Dimensions

Altezza Custodia B
100 mm
Entrata cavo
w. thread
Lunghezza, custodie
132 mm

General data

Grado di protezione
IP66
IP68
in plugged condition
Superficie
Powder coating

Version

Adatti per ModuPlug®
Yes
BG
3
Colore (RAL)
RAL 9011
RAL 9005
Cover
without cover
Design of locking system
Clamping yoke connection
Entrata cavo
w. thread
Filettatura (interna)
M 40
Forme
Standard
Guarnizione
no sealing
Number of cable entry on top
1
Number of cable glands
0
Número de entradas de cable en la parte lateral
0
Size of cable entries
M 40
Taille de construction
3
Tightening torque
6,5 Nm
Tipo
Plug
Top part/bottom part/lid
upper part
Versione con gancio
Clamping yoke connection
Versión, cajas
Plug housing

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
