Properties
| Version | HDC enclosures, Size: 8, Protection degree: IP68, IP69K, IP68 (in plugged condition), Cover, Clamping yoke connection, , Size of cable entries: M 50 |
| Order No. | 2451460000 |

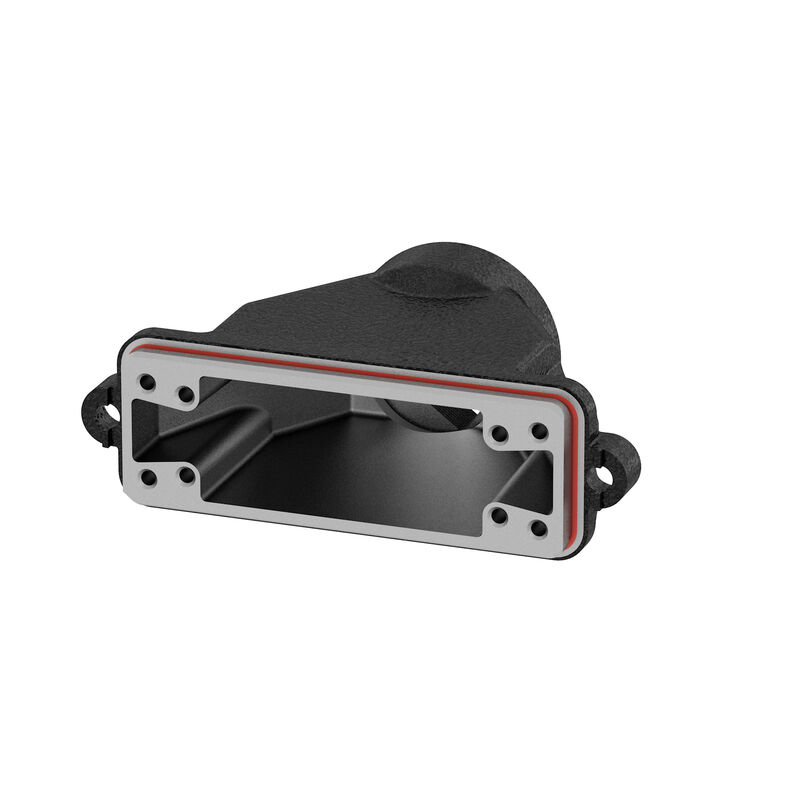

| Type | HDC IP68 HP 24B 1M50 |
| GTIN (EAN) | 4050118466379 |
| Qty. | 1 items |
| Net weight | 793 g |
| Limit temperature | -50 °C ... 120 °C |
| Chemical resistance |
|
| BG | 8 |
| Colour |
black
black (similar to RAL 9005) |
| Design of housing | Cover |
| Protection degree |
IP68
IP69K IP68 (in plugged condition) |
| Series | HighPower |
| Size | 8 |
| Surface finish | Powder coating |
| Type | Cover |
| EMC housings | Yes |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree |
IP68
IP69K IP68 (in plugged condition) |
| Series | HighPower |
| Surface finish | Powder coating |
| Tightening torque | 11 Nm |
| BG | 8 |
| Cable entry | w. thread |
| Clamp version | Clamping yoke connection |
| Colour (RAL) |
RAL 9011
RAL 9005 |
| Design of housing | Cover |
| Design of locking system | Clamping yoke connection |
| Internal thread | M 50 |
| Number of cable entry on top | 1 |
| Sealing | Silicone rubber |
| Size | 8 |
| Size of cable entries | M 50 |
| Tightening torque | 11 Nm |
| Top part/bottom part/lid | Cover |
| Type | Cover |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96026) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2451460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2451460000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2451460000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
