Properties
| Version | Fixing clip |
| Order No. | 1989290000 |

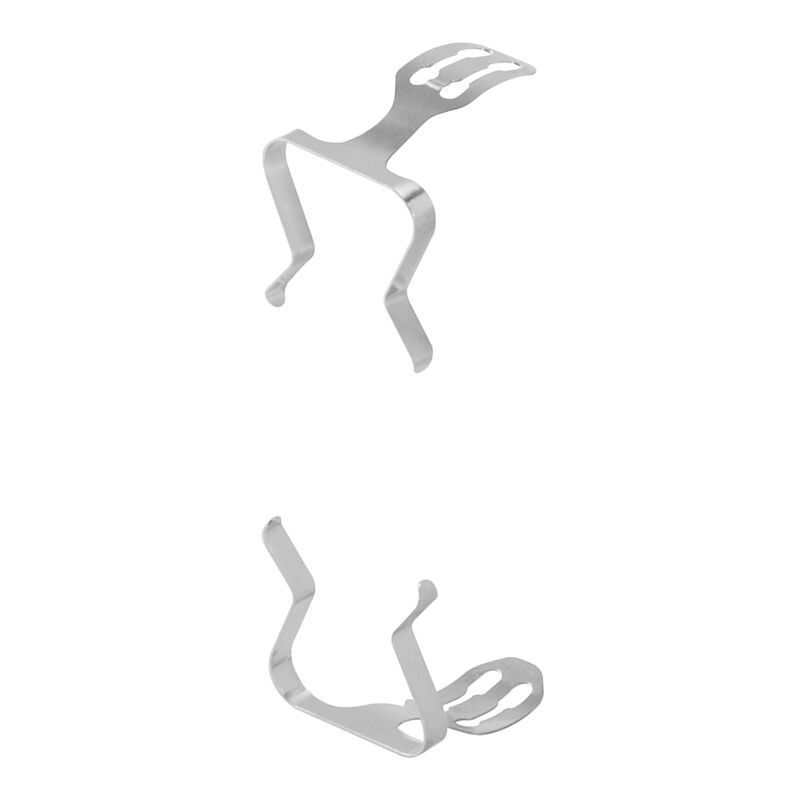

| Type | HDC MBUS 2 MCLIP |
| GTIN (EAN) | 4050118373745 |
| Qty. | 2 items |
| Depth | 12.8 mm |
| Depth (inches) | 0.504 inch |
| Height | 14.7 mm |
| Height (inches) | 0.579 inch |
| Width | 15.1 mm |
| Width (inches) | 0.594 inch |
| Net weight | 0.168 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | metal |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87520) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1989290000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Is accessory of
-
Item No.:1428990000Packaging unit:1 PC
Data module, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 1
-
Item No.:1429020000Packaging unit:1 PC
Data module, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 1
ConnectorsHeavy duty connectorsRockStar® ModuPlugModulesElectrical modules
