Properties

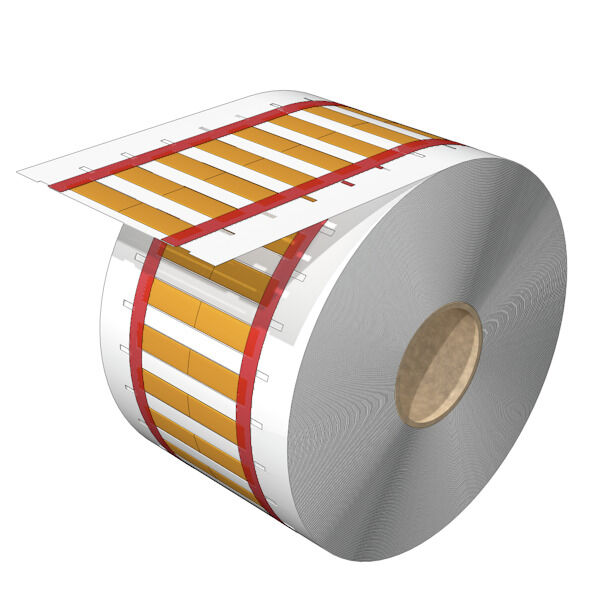

| Version | Conductor and cable markers, 1.6 - 4.8 mm, 25.4 x 7.6 mm, yellow |
| Order No. | 2437560000 |
| Type | HS 1.6-4.8/25 MM Y |
| GTIN (EAN) | 4050118461350 |
| Qty. | 2,000 items |
| Depth | 0.77 mm |
| Depth (inches) | 0.03 inch |
| Height | 25.4 mm |
| Height (inches) | 1 inch |
| Width | 7.6 mm |
| Width (inches) | 0.299 inch |
| Net weight | 0.3 g |
| Operating temperature range | -55...135 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | Yes |
| Material | Polyolefine |
| Number per roll | 800 |
| Operating temperature range | -55...135 °C |
| Operating temperature range, max. | 135 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries |
Plant manufacture
Energy Device manufacturer Machinery |
| Width | 7.6 mm |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 0.75 mm² |
| Conductor O.D. | 1.6 - 4.8 mm |
| Conductor O.D., max. | 4.8 mm |
| Conductor O.D., min. | 1.6 mm |
| Cross-section for connected wire | 0.75 - 4 mm² |
| Halogen | Yes |
| Rate of shrinkage | 3:1 |
| Recommended shrinking temperature | 90 °C |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2437560000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
