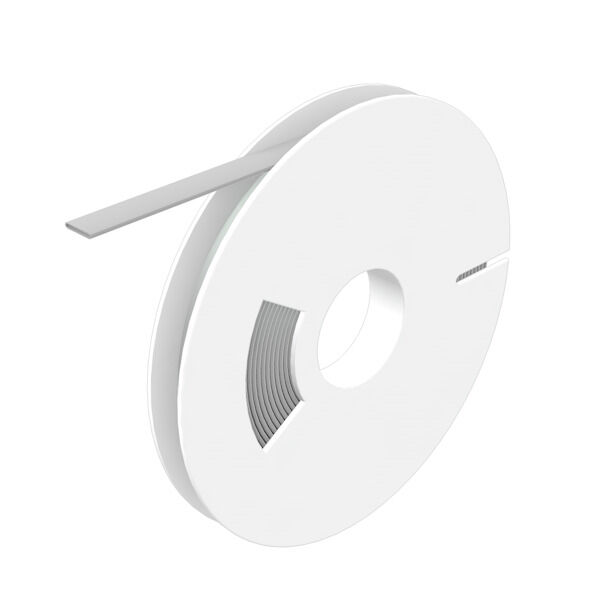

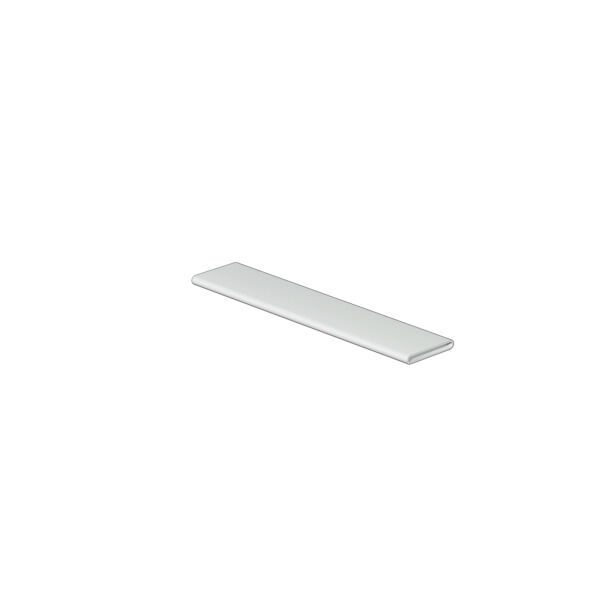

Conductor and cable markers, 3.2 - 6.4 mm, white

Produkt ID 1423360000
Download datablad Produktdownloads Engineering-support
Tilbehør 4 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 3.2 - 6.4 mm, white
Order No.
1423360000
Type
HSS-HF 3.2-6.4 EL W13M
GTIN (EAN)
4050118227666
Qty.
1 Styk

Dimensions and weights

Depth
0,9 mm
Depth (inches)
0,035 inch
Width
10,7 mm
Width (inches)
0,421 inch
Length
13.000 mm
Length (inches)
511,81 inch
Net weight
190 g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
No
Length
13.000 mm
Number per roll
1
Operating temperature range
-55...105 °C
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Printed characters
without
Type of printing
neutral
Width
10,7 mm

Conductor and cable markers

Anchura de campo de texto
0 mm
Conductor cross-section, max.
6 mm²
Conductor cross-section, min.
1,5 mm²
Conductor O.D., max.
6,4 mm
Conductor O.D., min.
3,2 mm
Cross-section for connected wire
1.5 - 6 mm²
empfohlene Schrumpftemperatur
90 °C
Halogen
No
Ledarytterdiameter
3.2 - 6.4 mm
Rate of shrinkage
2:1
Text field height
10,5 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
