Properties
| Version | Crimping tool for contacts, 1mm², 1mm², FoderBcrimp |
| Order No. | 9010950000 |

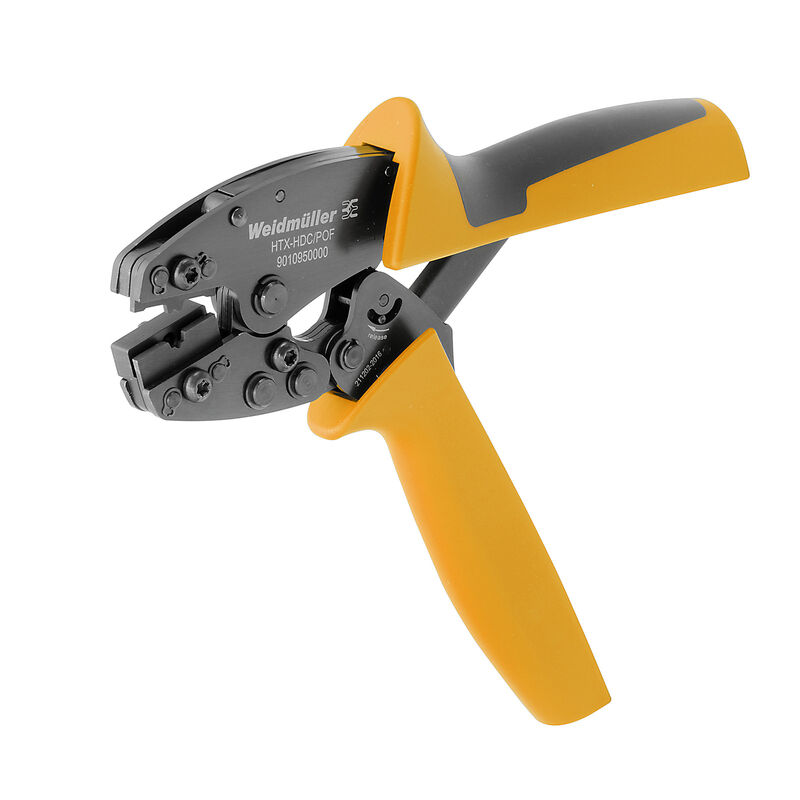

| Type | HTX-HDC/POF |
| GTIN (EAN) | 4032248331543 |
| Qty. | 1 items |
| Width | 200 mm |
| Width (inches) | 7.874 inch |
| Net weight | 404.08 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tool for fibre-optic contacts |
| Version | Mechanical, without interchangeable inserts |
| Crimping range, max. | 1 mm² |
| Crimping range, min. | 1 mm² |
| Type of contact | Fibre-optic connector |
| Crimping type/profile | FoderBcrimp |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66795) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9010950000) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101162) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
Is accessory of
-
Item No.:1773630000Packaging unit:10 PC
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Pin, Conductor cross-section, max.: 1, turned, Copper alloy
-
Item No.:1773640000Packaging unit:10 PC
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy
ConnectorsHeavy duty connectorsCrimp contactsCrimp contacts LWL
