Properties
| Version | Flange FO, IP67, Multimode, POF |
| Order No. | 1221010000 |

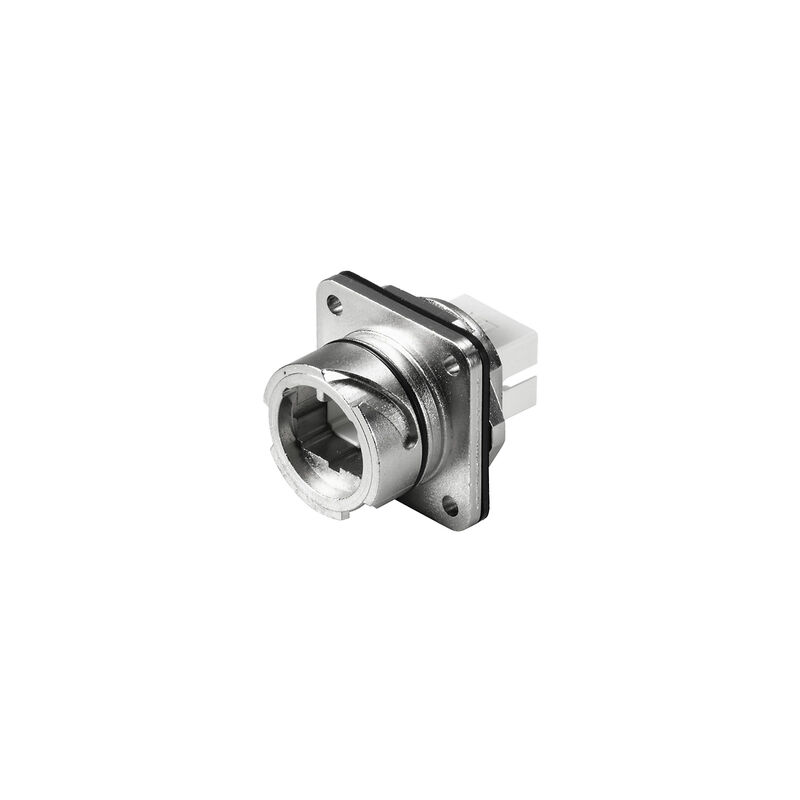

| Type | IE-BS-V01M-SCRJ-MM |
| GTIN (EAN) | 4050118003949 |
| Qty. | 10 items |
| Depth | 37 mm |
| Depth (inches) | 1.457 inch |
| Height | 32 mm |
| Height (inches) | 1.26 inch |
| Width | 32 mm |
| Width (inches) | 1.26 inch |
| Net weight | 5.8 g |
| Operating temperature | -40 °C...70 °C |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | e5bbf197-73b5-420b-90c0-0173b7b3b6b7 |
| Connection 1 | SCRJ |
| Connection 2 | SCRJ |
| Gender | female |
| Housing main material | Zinc diecast |
| Housing style | V1 |
| Outlet direction | Straight |
| Protection degree | IP67 |
| Colour | Miscellaneous |
| Connection 1 | SCRJ |
| Connection 2 | SCRJ |
| Fibre type |
Multimode
POF |
| Housing main material | Zinc diecast |
| Insertion loss | ≤ 0.4 dB |
| Plugging cycles | 500 |
| Protection degree | IP67 |
| Return loss (attenuation) | ≥ 30 dB |
| Connector standard |
IEC 61076-3-106 Var. 1
IEC 61754-24 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_181143) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1221010000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001122 |
| ETIM 7.0 | EC001122 |
| ETIM 8.0 | EC001122 |
| ETIM 9.0 | EC001122 |
| ECLASS 9.0 | 19-17-01-22 |
| ECLASS 9.1 | 19-17-01-22 |
| ECLASS 10.0 | 19-17-01-22 |
| ECLASS 11.0 | 19-17-01-22 |
| ECLASS 12.0 | 19-17-01-22 |
| ECLASS 13.0 | 19-17-01-22 |
