IE-BS-V01M-SCRJ-SM

IE-BS-V01M-SCRJ-SM — Installation cut-out

Mounting cut-out: 1. With central screw connection / 2. For mounting with four M3 screws

IE-BS-V01M-SCRJ-SM — Detailed drawing

Wall thickness when using the central screw connection

Download data sheet

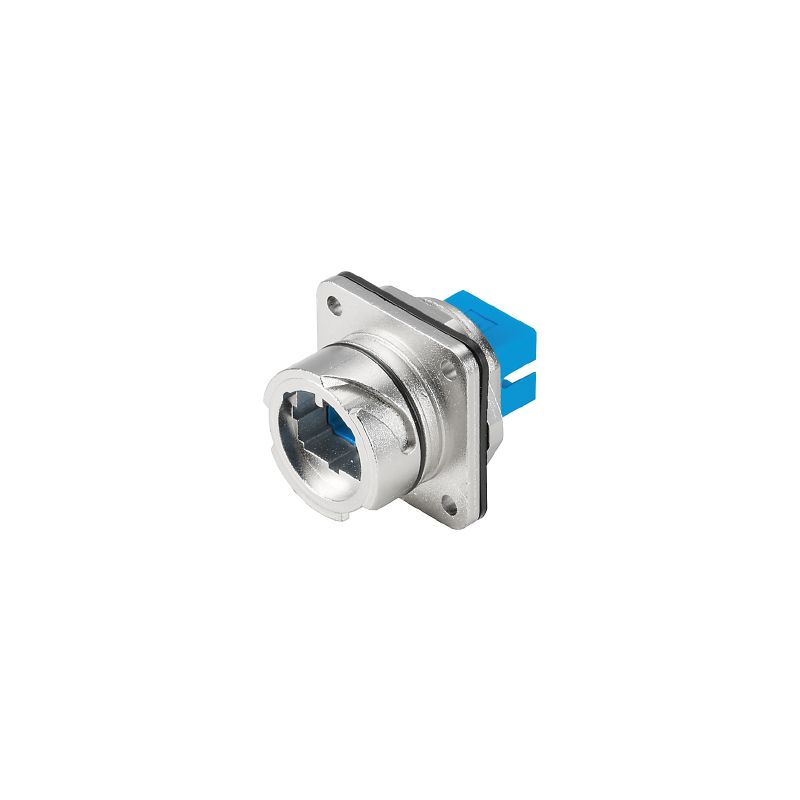

IE-BS-V01M-SCRJ-SM

Flange FO, IP67, Singlemode

Item No. 1221020000

Properties

General ordering data

Version	Flange FO, IP67, Singlemode
Order No.	1221020000
Type	IE-BS-V01M-SCRJ-SM
GTIN (EAN)	4050118004113
Qty.	10 items

Dimensions and weights

Depth	37 mm
Depth (inches)	1.457 inch
Height	32 mm
Height (inches)	1.26 inch
Width	32 mm
Width (inches)	1.26 inch
Net weight	63.7 g

Operating temperature

-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
SCIP	e5bbf197-73b5-420b-90c0-0173b7b3b6b7

Colour	Miscellaneous
Connection 1	SCRJ
Connection 2	SCRJ
Fibre type	Singlemode
Housing main material	Zinc diecast
Insertion loss	≤ 0.5 dB
Plugging cycles	500
Protection degree	IP67
Return loss (attenuation)	≥ 40 dB

General standards

Connector standard

IEC 61076-3-106 Var. 1
IEC 61754-24

Approval/Certificate/Document of Conformity	[PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_151662)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1221020000)
User Documentation	[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065) [MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183)

Classifications

ETIM 6.0	EC000752
ETIM 7.0	EC000752
ETIM 8.0	EC000752
ETIM 9.0	EC000752
ECLASS 9.1	19-17-01-16
ECLASS 10.0	19-17-01-16
ECLASS 11.0	19-17-01-16
ECLASS 12.0	19-17-01-16
ECLASS 13.0	19-17-01-16
ECLASS 14.0	19-17-01-16

ROHS

Conform
