IE-C5DB4RE1000MCSMCS-E

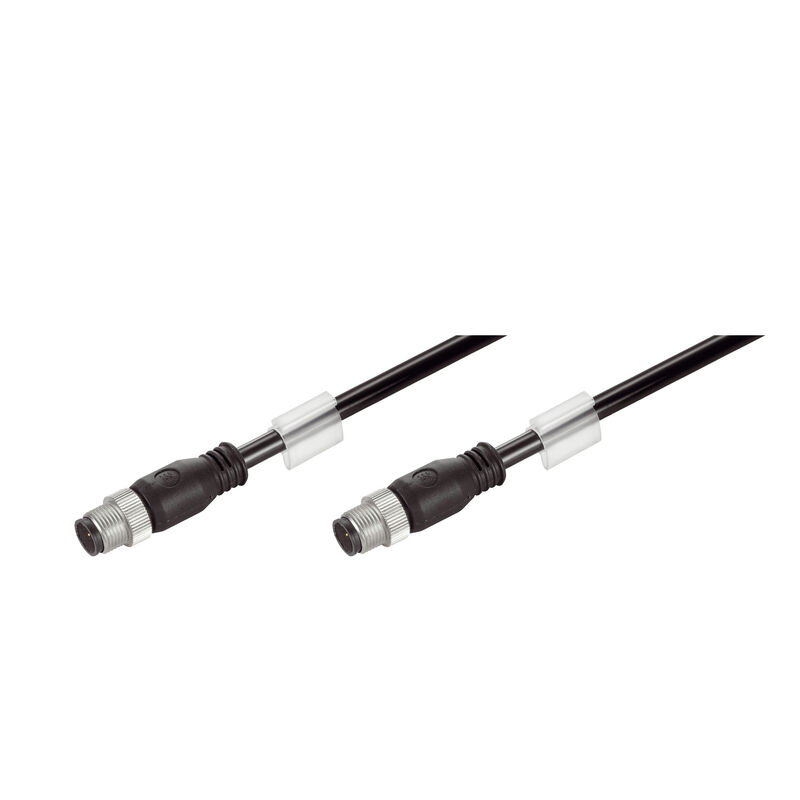

System cable, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), Radox GKW S, 100 m

Item No. 1010851000

Version	System cable, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), Radox GKW S, 100 m
Order No.	1010851000
Type	IE-C5DB4RE1000MCSMCS-E
GTIN (EAN)	4050118337716
Qty.	1 items

REACH SVHC	Lead 7439-92-1
SCIP	67cf1078-beca-4687-860b-dc475a6ec24a

Corrosiveness of fumes	to IEC 60754-2
Fire protection in buses	According to ISO 6722-1 5.22 (UN ECE-R 118.01)
Fire safety for railway vehicles	According to DIN 5510-2 fire safety levels 1,2,3,4 According to BS 6853 According to EN50288-2-2 According to EN 45545, HL1 - HL3
Flames propagate vertically on bundled cables	According to BS4066-3 DIN EN 50266-2-5 According to IEC 60332-3-25 D
Fluorine content	According to EN 60684-2 Section 45.2
Hydrogen halide content	According to EN-50267-2-1 According to IEC 60754-1
Impervious to smoke	According to BS 6853 Appendix D in accordance with EN 50268-2 According to IEC 61034-2
Multi-wire metallic data and control cable	According to EN50288-2-2
Poisonous gases	According to BS 6853 Appendix B

Corrosiveness of fumes	to IEC 60754-2
Fire safety for railway vehicles	According to DIN 5510-2 fire safety levels 1,2,3,4 According to BS 6853 According to EN50288-2-2 According to EN 45545, HL1 - HL3
Flames propagate vertically on bundled cables	According to BS4066-3 DIN EN 50266-2-5 According to IEC 60332-3-25 D
Fluorine content	According to EN 60684-2 Section 45.2
Hydrogen halide content	According to EN-50267-2-1 According to IEC 60754-1
Impervious to smoke	According to BS 6853 Appendix D in accordance with EN 50268-2 According to IEC 61034-2
Multi-wire metallic data and control cable	According to EN50288-2-2
Poisonous gases	According to BS 6853 Appendix B

Category

Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)

Abrasion resistance	very good
Corrosiveness of fumes	to IEC 60754-2
Halogen	halogen-free, according to IEC 60754-2
Impervious to smoke	According to BS 6853 Appendix D in accordance with EN 50268-2 According to IEC 61034-2
Min. bending radius, repetitive	6 *diameter
Resistance to oils	in accordance with EN 50306-3

Plug left

M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug right

M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded
