Properties

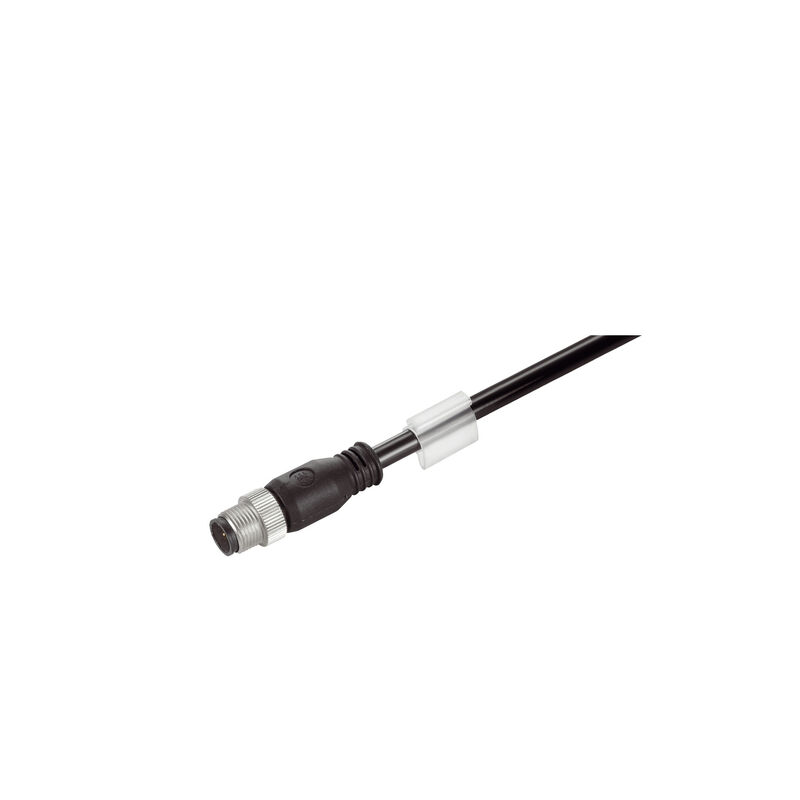

| Version | System cable, M12 D-code – IP 67 straight pin, Open, Cat.5 (ISO/IEC 11801), Radox GKW S, 10 m |
| Order No. | 1269740100 |
| Type | IE-C5DB4WE0100MCSXXX-E |
| GTIN (EAN) | 4050118060713 |
| Qty. | 1 items |
| Length | 10 m |
| Length (inches) | 393.701 inch |
| Net weight | 646 g |
| Storage temperature | -40 °C...90 °C |
| Operating temperature | -40 °C...90 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Category | Cat.5 (ISO/IEC 11801) |
| Connector left | M12 D-code – IP 67 straight pin |
| Connector right | Open |
| Material sheath | Radox GKW S |
| Product type | System cable |
| Sheathing colour |
black
SF/UTP |
| Corrosiveness of fumes | to IEC 60754-2 |
| Fire protection in buses | According to ISO 6722-1 5.22 (UN ECE-R 118.01) |
| Fire safety for railway vehicles |
According to DIN 5510-2 fire safety levels 1,2,3,4
According to BS 6853 According to EN50288-2-2 According to EN 45545, HL1 - HL3 |
| Flames propagate vertically on bundled cables |
According to BS4066-3
DIN EN 50266-2-5 According to IEC 60332-3-25 D |
| Fluorine content | According to EN 60684-2 Section 45.2 |
| Hydrogen halide content |
According to EN-50267-2-1
According to IEC 60754-1 |
| Impervious to smoke |
According to BS 6853 Appendix D
in accordance with EN 50268-2 According to IEC 61034-2 |
| Multi-wire metallic data and control cable | According to EN50288-2-2 |
| Poisonous gases | According to BS 6853 Appendix B |
| Connector standard | IEC 61076-2-101 |
| Connector standard | IEC 61076-2-101 |
| Corrosiveness of fumes | to IEC 60754-2 |
| Fire safety for railway vehicles |
According to DIN 5510-2 fire safety levels 1,2,3,4
According to BS 6853 According to EN50288-2-2 According to EN 45545, HL1 - HL3 |
| Flames propagate vertically on bundled cables |
According to BS4066-3
DIN EN 50266-2-5 According to IEC 60332-3-25 D |
| Fluorine content | According to EN 60684-2 Section 45.2 |
| Hydrogen halide content |
According to EN-50267-2-1
According to IEC 60754-1 |
| Impervious to smoke |
According to BS 6853 Appendix D
in accordance with EN 50268-2 According to IEC 61034-2 |
| Multi-wire metallic data and control cable | According to EN50288-2-2 |
| Poisonous gases | According to BS 6853 Appendix B |
| Cross-section | 2*2*AWG 22/7 - 2*2*0.36 mm² |
| Insulation cross-section | 1.58 mm |
| Material sheath | Radox GKW S |
| Sheath diameter, max. | 7 mm |
| Sheath diameter, min. | 6.2 mm |
| Sheathing colour |
black
SF/UTP |
| Shielding | SF/UTP |
| Strands | 7 |
| Category | Cat.5 (ISO/IEC 11801) |
| Abrasion resistance | very good |
| Corrosiveness of fumes | to IEC 60754-2 |
| Halogen | halogen-free, according to IEC 60754-2 |
| Impervious to smoke |
According to BS 6853 Appendix D
in accordance with EN 50268-2 According to IEC 61034-2 |
| Min. bending radius, repetitive | 6 *diameter |
| Resistance to oils | in accordance with EN 50306-3 |
| Plug left | M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_152851) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1269740100) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ROHS | Conform |
