IE-C5DD4UG0250MCAMCA-E

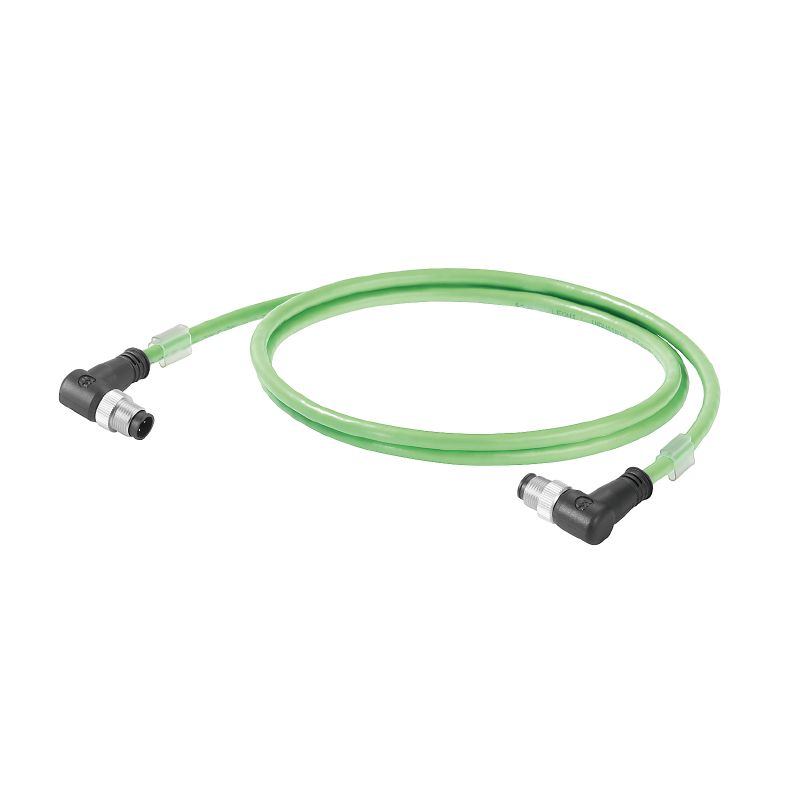

Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, M12 D-code – IP 67 angled pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 25 m

Produkt ID 1059890250
Download datablad Engineering Support Product Downloads
Tilbehør 6 Anvendte produkter 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, M12 D-code – IP 67 angled pin, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 25 m
Order No.
1059890250
Type
IE-C5DD4UG0250MCAMCA-E
GTIN (EAN)
4050118321289
Qty.
1 Styk

Dimensions and weights

Length
25 m
Length (inches)
984,252 inch
Net weight
1.379,84 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Standards

Norm Schirmmaterial
DIN EN 13602 Cu-ETP-A..B
Standard, izolační materiál
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Blindage complet
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diametro rivestimento interno
3,9 mm
Disposición de los conductores
Star-quad
Filler
As central element
Grubość oplotu ekranującego
0,13 mm
Insulation
PE
Insulation cross-section
1,5 mm
Material sheath
PUR
Number of wires
4
Recouvrement par tressage de blindage
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,9 mm
Shielding
SF/UTP
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Vezeték anyag
Stranded tin-plated copper wire
Wire core insulation thickness
0,38 mm
컬러 시퀀스 또는 와이어 - 와이어 쌍
white, yellow, blue, orange

Electrical properties of cable

Capacity at 1 kHz
52 nF/km
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
hastighet
180 m/min
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Resistance differential
3 %
Signal propagation time
5,3 ns/m
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m at 10 MHz
Категория
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)

Mechanical and material properties of cable

Abrasion resistance
very good
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Plug, right

Plug right
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
