IE-C5DS4VG0030MCSMCS-E

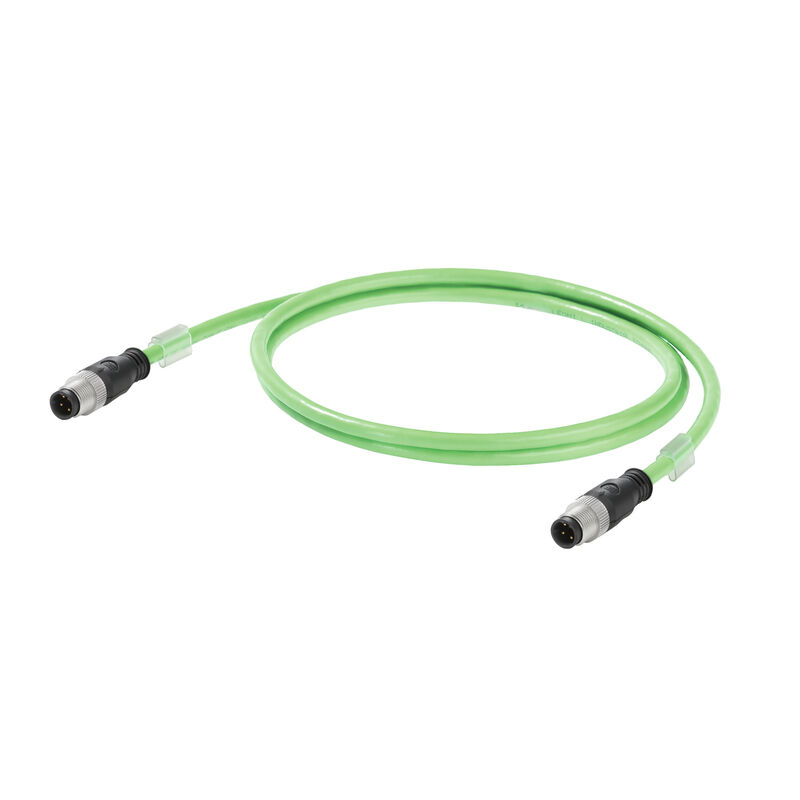

Systemkabel, M12 D-kod – IP 67 hane rak, M12 D-kod – IP 67 hane rak, Kat. 5 (ISO/IEC 11801)/Kat. 5e (TIA T568-B), PVC, 3 m

Produkt-ID 1102190030
Ladda ner datablad Teknisk support Nedladdningar av produkter
Använda produkter 18
Godkännanden Allmänna beställningsdata Mått och vikter Temperaturer Miljööverenstämmelse för produkt Kabelspecifika standarder General standards Normer Cable structure Propiedades eléctricas cable Mechanical and material properties of cable Plug, left Plug, right Klassificeringar

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Uppfyllelse
UL File Number Search
[UL-webbplats](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

Allmänna beställningsdata

Version
Systemkabel, M12 D-kod – IP 67 hane rak, M12 D-kod – IP 67 hane rak, Kat. 5 (ISO/IEC 11801)/Kat. 5e (TIA T568-B), PVC, 3 m
Order No.
1102190030
Type
IE-C5DS4VG0030MCSMCS-E
GTIN (EAN)
4050118009033
Qty.
1 items

Mått och vikter

Length
3 m
Bygglängd (tum)
118.11 inch
Nettovikt
225.18 g

Temperaturer

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-40 °C...80 °C

Miljööverenstämmelse för produkt

RoHS Compliance Status
Kompatibel med undantag
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Kabelspecifika standarder

Standard, assembly
UL-Style 21694
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) tabell 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

General standards

Certificate no. (cULus)
E316369

Normer

Standard, assembly
UL-Style 21694
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) tabell 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

green (RAL 6018)
Arrangement of wire cores
Star-quad
Colour sequence or wires - wire pairs
blanc, jaune, bleu, orange
Complete shielding
Feuille d'aluminium
Tressage de blindage de fils de cuivre
Cross-section
4*AWG 22/7 - 0,32 mm²
Diameter of inner sheathing
4.05 mm
Filler
As central element
Insulation
PE
Insulation cross-section
1.5 mm
Material sheath
PVC
Number of wires
4
Overlap of shielding braid
85 %
Sheath diameter, max.
6.7 mm
Sheath diameter, min.
6.3 mm
Sheathing material thickness
0.9 mm
Shielding
SF/UTP
Shielding braid thickness
0.13 mm
Standard designations
2YY(ST)CY 2x2x0,75/1,5-100 LI VZN GN
Strands
7
Wire material
Flertrådig förtennad kopparledare

Propiedades eléctricas cable

Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 5 Ω pour 100 Mhz
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage (UL)
600 V
Signal propagation time
5.3 ns/m
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m vid 10 MHz

Mechanical and material properties of cable

Abrasion resistance
good
Halogen
Yes
Min. bending radius, once only
3.5 *diameter
Min. bending radius, repetitive
7.5 x cable diameter
Resistance to spread of flame
enligt IEC 60332-1/UL 1685

Plug, left

Plug left
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded

Klassificeringar

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
