Properties
| Version | System cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 500 m |
| Order No. | 2763500000 |

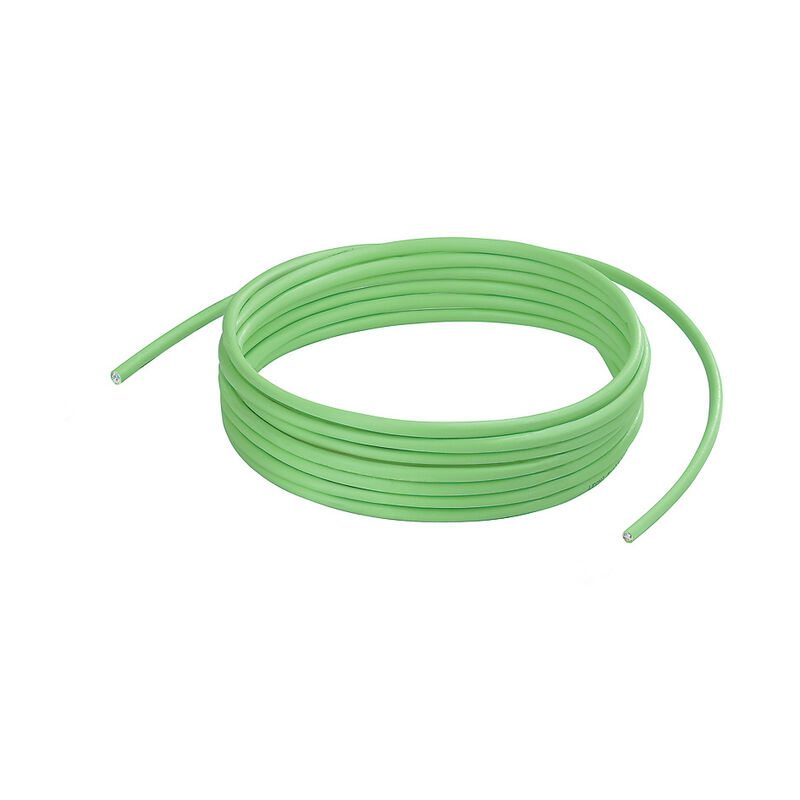

| Type | IE-C5ES8UG-500 |
| GTIN (EAN) | 4064675016458 |
| Qty. | 1 items |
| Packaging | on plywood reel |
| Length | 500 m |
| Length (inches) | 19,685.039 inch |
| Net weight | 10,750 g |
| Storage temperature | -40 °C...75 °C |
| Operating temperature | -40 °C...75 °C |
| Installation temperature | -10 °C...60 °C |
| Halogen | halogen-free, according to IEC 60754-2 |
| Insulation | PE |
| Number of poles | 8 |
| Number of wires | 8 |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Sheathing colour | green (RAL 6018) |
| Test voltage: wire-wire-shield | 1000 Vrms, 50 Hz, 1 min |
| Corrosiveness of fumes | to IEC 60754-2 |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
| Corrosiveness of fumes | to IEC 60754-2 |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding |
Aluminium foil
Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation | PE |
| Insulation cross-section | 1 mm |
| Material sheath | PUR |
| Number of wires | 8 |
| Overlap of shielding braid | 65 % |
| Sheath diameter, max. | 6.3 mm |
| Sheath diameter, min. | 5.7 mm |
| Sheathing colour | green (RAL 6018) |
| Shielding | SF/UTP |
| Shielding braid thickness | 0.1 mm |
| Standard designations |
SF/UTP
IE-5CC4x2xAWG26/7-PUR LI02YS(ST)C11Y (UL) AWM 20963 80°C 30V |
| Strands | 7 |
| Wire material | Stranded tin-plated copper wire |
| Capacity at 1 kHz | 47 nF/km |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Delay skew | 25 ns/100m |
| Loop resistance | 290 Ω/km |
| Signal propagation time | 4.85 ns/m |
| Test voltage: wire-wire-shield | 1000 Vrms, 50 Hz, 1 min |
| Abrasion resistance | very good |
| Corrosiveness of fumes | to IEC 60754-2 |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 4 x cable diameter |
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
| UV-resistant | Yes |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| ETIM 9.0 | EC003249 |
| ECLASS 9.0 | 27-06-18-05 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-18-01 |
| ECLASS 11.0 | 27-06-18-01 |
| ECLASS 12.0 | 27-06-18-01 |
| ECLASS 13.0 | 27-06-18-01 |
| ROHS | Conform |
