Properties

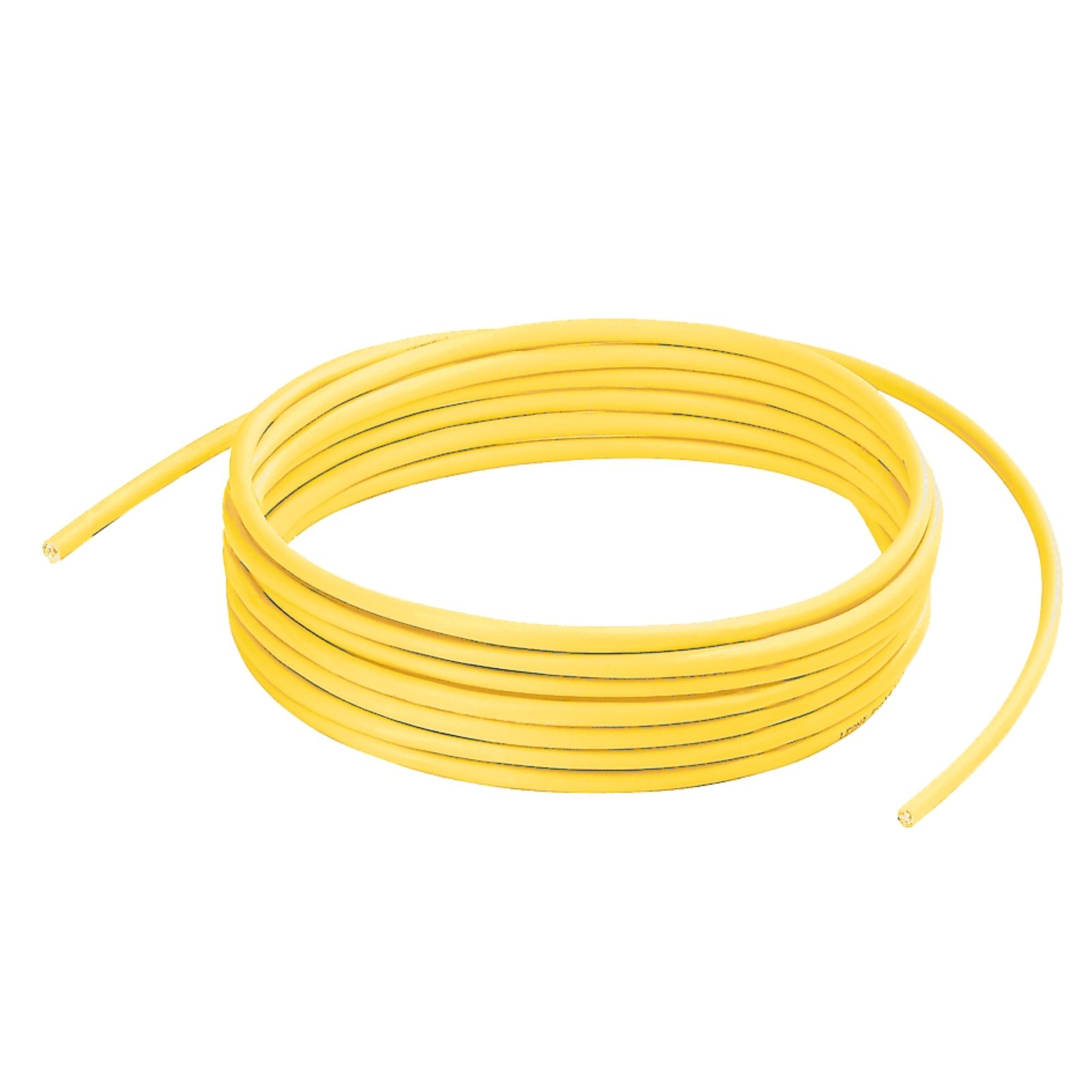

| Version | System cable, Cat.7 (ISO/IEC 11801), LSZH, 305 m |
| Order No. | 1344670000 |
| Type | IE-C7FS8LY-305M |
| GTIN (EAN) | 4050118146813 |
| Qty. | 1 items |
| Packaging | as cable ring in carton |
| Length | 305 m |
| Length (inches) | 12,007.874 inch |
| Net weight | 12,360 g |
| Storage temperature | -20 °C...60 °C |
| Operating temperature | -20 °C...60 °C |
| Installation temperature | 0 °C...50 °C |
| Halogen | No |
| Insulation | PE |
| Number of wires | 8 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Sheathing colour | yellow |
| Test voltage: wire-wire-shield | 2.5 kV / DC for 2 sec |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Impervious to smoke | to IEC 60754-2 |
| Certificate no. (cULus) | E349758 |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Impervious to smoke | to IEC 60754-2 |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Copper diameter | 0.43 mm |
| Cross-section | 4*2*AWG 27/7 - 4*2*0.1 mm² |
| Insulation | PE |
| Insulation cross-section | 1 mm |
| Material sheath | LSZH |
| Number of wires | 8 |
| Overlap of shielding braid | 60 % |
| Sheath diameter | 6.0 mm |
| Sheathing colour | yellow |
| Shielding | S/FTP |
| Strands | 7 |
| Wire material | Non-insulated copper wire |
| Capacity at 1 kHz | 44 nF/km |
| Category | Cat.7 (ISO/IEC 11801) |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Coupling attenuation up to 1000 MHz | 80 dB |
| Coupling resistance at 10 MHz / m | 5 mΩ |
| Delay skew | 2.5 ns/100m |
| Loop resistance | 170 Ω/km |
| Operating voltage | 125 V max. |
| Resistance differential | 5 % |
| Separating class according to EN 50174-2 | d |
| Shield attenuation up to 1000 MHz | 60 dB |
| Test voltage: wire-wire-shield | 2.5 kV / DC for 2 sec |
| Halogen | No |
| Impervious to smoke | to IEC 60754-2 |
| Min. bending radius, once only | 5 x cable diameter |
| Pulling force | max. 40 N |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Approval/Certificate/Document of Conformity |
[TSN - CC-Link CabinetLine Raw cable Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293952)
[Field - CC-Link CabinetLine Raw cable Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293953) [Control - CC-Link CabinetLine Raw cable Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293954) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| ETIM 9.0 | EC003249 |
| ECLASS 9.0 | 27-06-18-05 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-18-01 |
| ECLASS 11.0 | 27-06-18-01 |
| ECLASS 12.0 | 27-06-18-01 |
| ECLASS 13.0 | 27-06-18-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E349758 |
