IE-CD-V14SCRJ/VAPM24V-C
IE-CD-V14SCRJ/VAPM24V-C

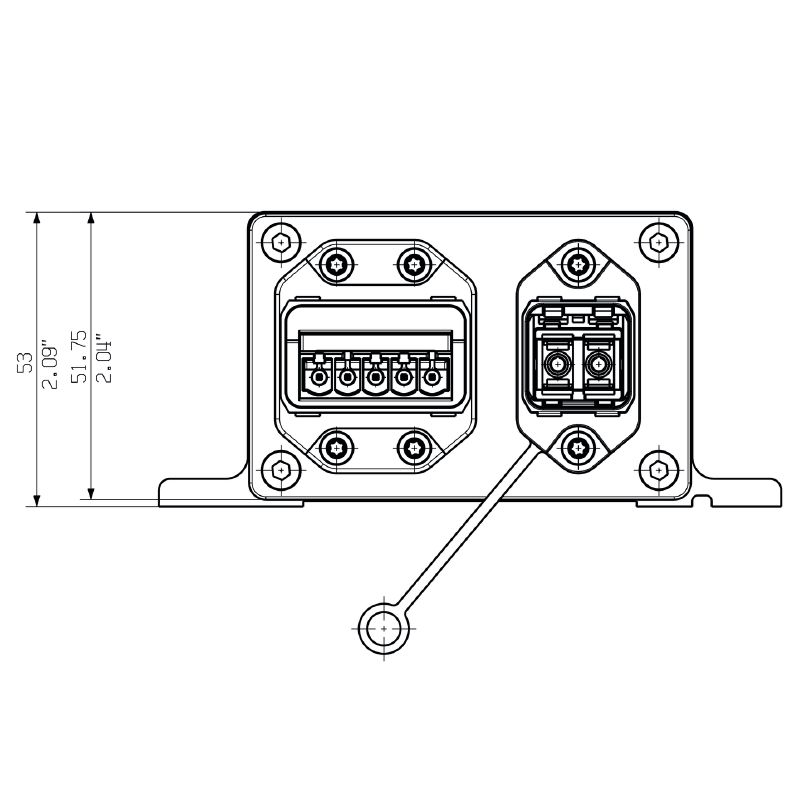

Dimensioned drawing
IE-CD-V14SCRJ/VAPM24V-C
Dimensioned drawing

IE-CD-V14SCRJ/VAPM24V-C

Junction box, FreeCon, Plug-in connector, SCRJ, Supply, IP65

Item No. 2448840000
Download data sheet Engineering Support Product Downloads
Accessories 2 Related products 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Optical properties of fibre-optic coupling Technical specifications for power connector Classifications

Approvals

ROHS
Conform

General ordering data

Version
Junction box, FreeCon, Plug-in connector, SCRJ, Supply, IP65
Order No.
2448840000
Type
IE-CD-V14SCRJ/VAPM24V-C
GTIN (EAN)
4050118462685
Qty.
1 items

Dimensions and weights

Depth
130.4 mm
Depth (inches)
5.134 inch
Height
53 mm
Height (inches)
2.087 inch
Width
100 mm
Width (inches)
3.937 inch
Net weight
804.65 g

Temperatures

Operating temperature
-20 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

General data

V-0
Colour
silver
Data interface
PROFINET PushPull SCRJ POF (V14)
Housing main material
Aluminium profile
Cover: die-cast zinc, painted
Plugging cycles
≥ 100
Power interface
PROFINET PushPull Power
Protection degree
IP65
Type of mounting
Screw mounting

General standards

Connector standard
IEC 61076-3-117 Var. 14
IEC 61754-24

Optical properties of fibre-optic coupling

Insertion attenuation (fibre-optic coupling)
≤ 3.5 dB

Technical specifications for power connector

Connection 2 (power connector)
Tension clamp
Connection cross-section AWG, max. (power connector)
13
Connection cross-section AWG, min. (power connector)
18
Contact carrier material (power connector)
PA
Contact material (power connector)
Copper alloy
Housing base material (power connector)
Zinc diecast
nickel-plated
Interlock type (power connector)
Push Pull
Nominal voltage (power connector)
24 V
Plugging cycles (power connector)
≤ 100
Pollution degree (power connector)
2
Seal material (power connector)
NBR
Wire connection cross section, finely stranded, max. (power connector)
2.5 mm²
Wire connection cross section, finely stranded, min. (power connector)
0.75 mm²

Classifications

ETIM 7.0
EC002597
ETIM 8.0
EC002597
ETIM 9.0
EC002597
ETIM 10.0
EC002597
ECLASS 9.1
27-44-03-18
ECLASS 10.0
27-44-03-18
ECLASS 11.0
27-44-03-18
ECLASS 12.0
27-44-03-18
ECLASS 13.0
27-44-03-18
ECLASS 14.0
27-44-03-18
ECLASS 15.0
27-44-03-18
