Properties

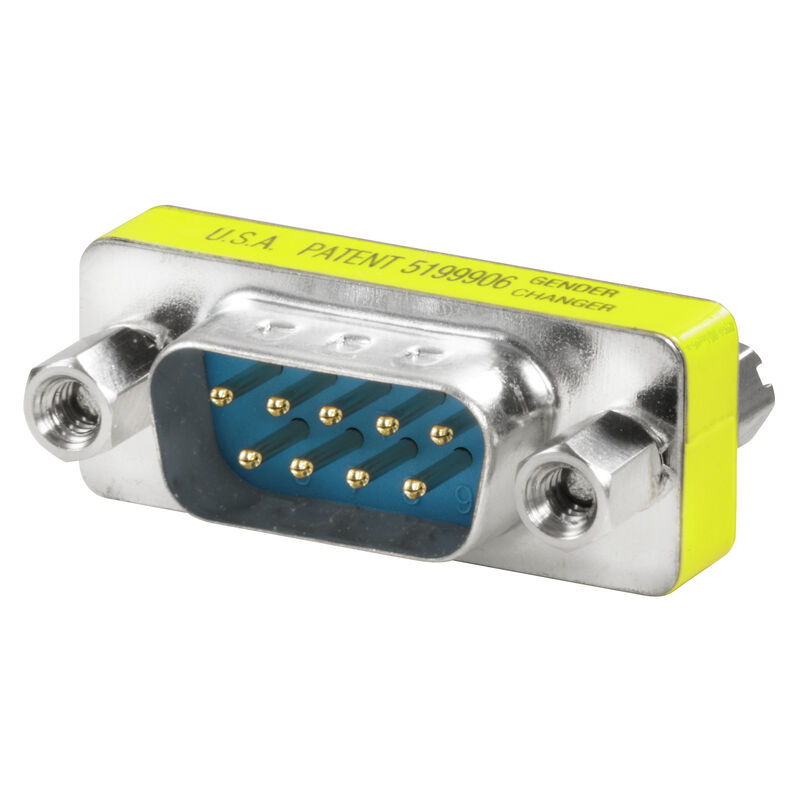

| Version | FrontCom, Signal insert D-Sub, 9-pole, Plug, Socket connector |
| Order No. | 1450850000 |
| Type | IE-FCI-D9-FM |
| GTIN (EAN) | 4050118255713 |
| Qty. | 1 items |

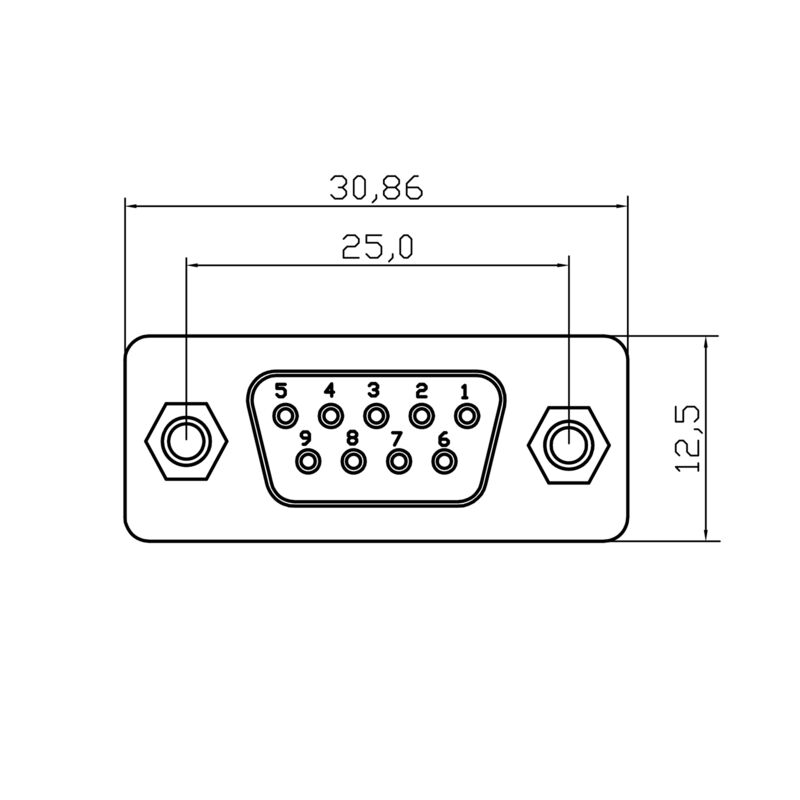

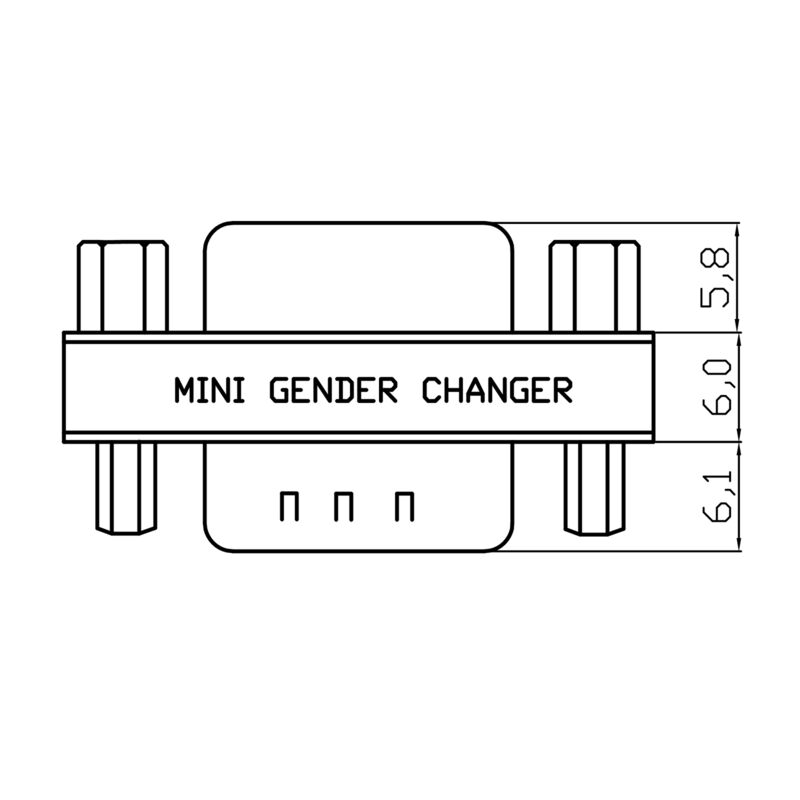

| Height | 17.9 mm |
| Height (inches) | 0.705 inch |
| Width | 12.5 mm |
| Width (inches) | 0.492 inch |
| Length | 30.8 mm |
| Length (inches) | 1.213 inch |
| Net weight | 11 g |
| Operating temperature | -55 °C...105 |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 14f36bdb-8bcd-4f24-8fb3-9538ad1abec6 |
| Contact resistance | ≤ 20 mΩ |
| Contact surface | Gold-plated |
| Current-carrying capacity | 3 A |
| Dielectric strength, contact / contact | 1 kV eff /1 min. |
| Housing main material | SPCC |
| Housing surface | tin-plated |
| Insulation strength | 1000 MΩ at 500 V DC |
| Material insulator | PBT glass fibre reinforced UL 94 V-0 |
| Number of poles | 9 |
| Insert type | Signal insert D-Sub, 9-pole |
| Protection degree | IP20 |
| Contact resistance | ≤ 20 mΩ |
| Dielectric strength, contact / contact | 1 kV eff /1 min. |
| Insulation strength | 1000 MΩ at 500 V DC |
| Certificate No. (DNV) | TAA000022B |
| Certificate No. (UR) | E497345 |
| Approval/Certificate/Document of Conformity | [GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97723) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1450850000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1450850000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1450850000&norm=0) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-18-90-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E497345 |
