Properties
| Version | Spare insert holder, Variant 5 to IEC 61076-3-106 |
| Order No. | 1993540000 |

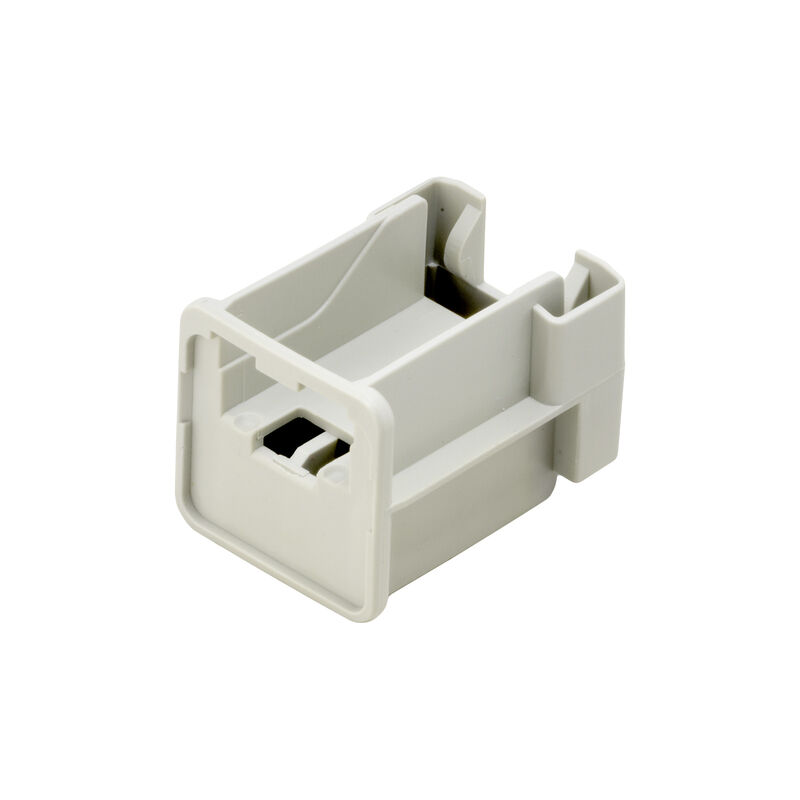

| Type | IE-PH-AD-V05M-RJ45 |
| GTIN (EAN) | 4050118378610 |
| Qty. | 1 items |
| Depth | 28.1 mm |
| Depth (inches) | 1.106 inch |
| Height | 21.1 mm |
| Height (inches) | 0.831 inch |
| Width | 21.2 mm |
| Width (inches) | 0.835 inch |
| Net weight | 20 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Miscellaneous |
| Housing main material | PBT |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_167076) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1993540000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90841) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| ROHS | Conform |
Is accessory of
-
Item No.:1962540000Packaging unit:10 PC
Empty enclosure, Plug housing, Variant 5 to IEC 61076-3-106, IP67
