Properties
| Version | SC insert, Plug SCRJ, singlemode |
| Order No. | 1067390000 |

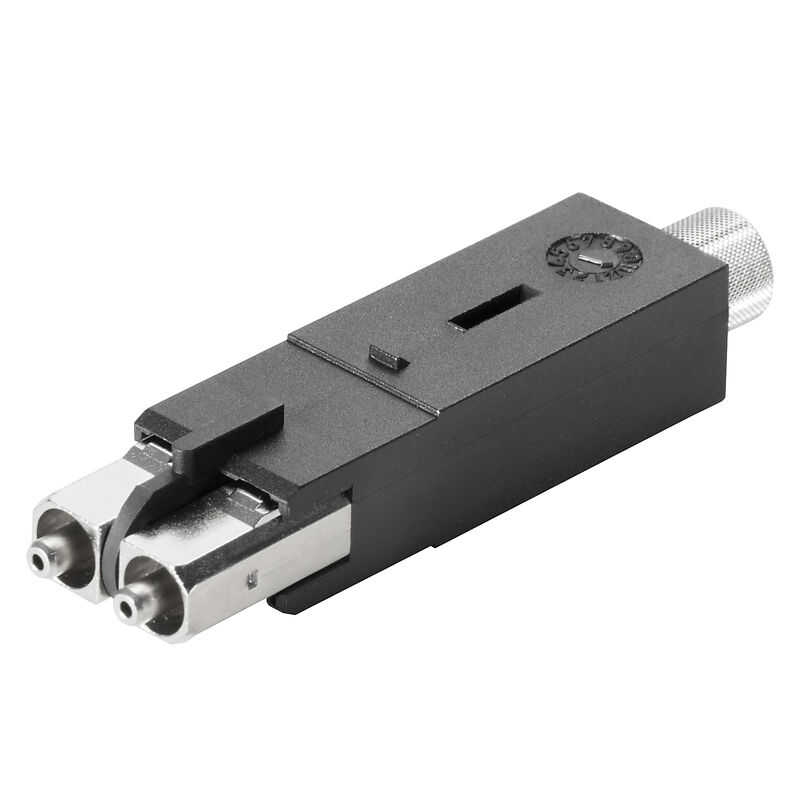

| Type | IE-PI-SCRJ-SM |
| GTIN (EAN) | 4032248820863 |
| Qty. | 10 items |
| Depth | 56 mm |
| Depth (inches) | 2.205 inch |
| Height | 10.5 mm |
| Height (inches) | 0.413 inch |
| Width | 13.2 mm |
| Width (inches) | 0.52 inch |
| Net weight | 19.4 g |
| Operating temperature | -40 °C...70 °C |
| REACH SVHC | Lead 7439-92-1 |
| Connection 1 | SCRJ |
| Connection 2 | Crimp |
| Gender | male |
| Housing main material |
Zinc diecast
PA |
| Outlet direction | Straight |
| Protection degree | IP67 with housing |
| Colour | Miscellaneous |
| Configuration | Connector and flange insert for variant 1, 4 and 14 housings |
| Connection 1 | SCRJ |
| Connection 2 | Crimp |
| Description of article | Plug SCRJ, singlemode |
| Ferrule material | Zirconia |
| Fibre type | Singlemode |
| Housing main material |
Zinc diecast
PA |
| Insertion loss | ≤ 0.5 dB |
| Plugging cycles | 1000 |
| Protection degree | IP67 with housing |
| Return loss (attenuation) | ≥ 40 dB |
| Certificate No. (UL) | E477798 |
| Connector standard | IEC 61754-24 |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90843) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001122 |
| ETIM 7.0 | EC001122 |
| ETIM 8.0 | EC001122 |
| ETIM 9.0 | EC001122 |
| ECLASS 9.0 | 19-17-01-22 |
| ECLASS 9.1 | 19-17-01-22 |
| ECLASS 10.0 | 19-17-01-22 |
| ECLASS 11.0 | 19-17-01-22 |
| ECLASS 12.0 | 19-17-01-22 |
| ECLASS 13.0 | 19-17-01-22 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UL) | E477798 |
