Properties

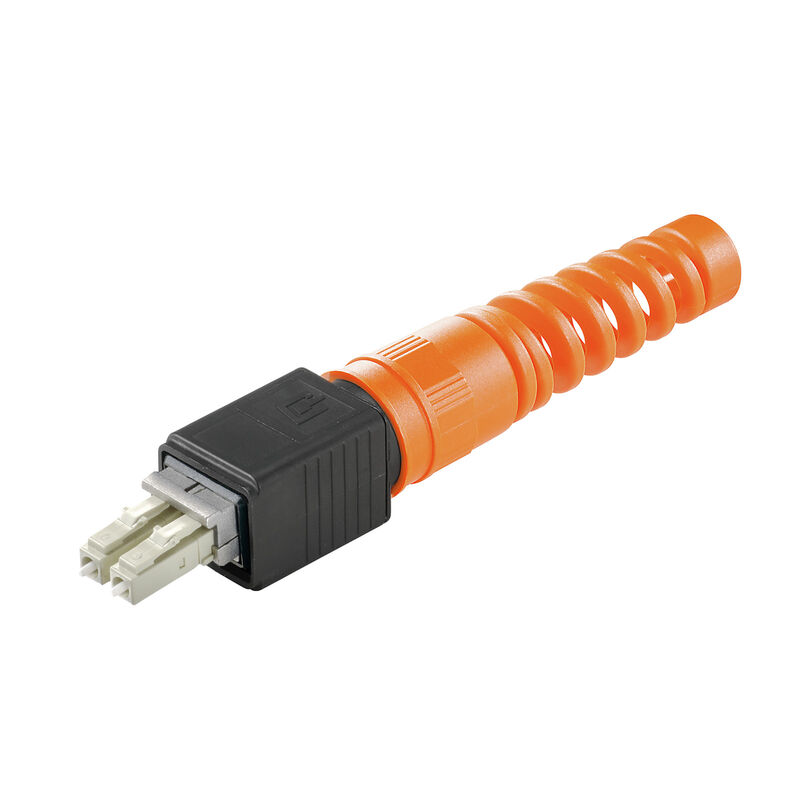

| Version | FO connector, Variant 4, LC-Duplex multi-mode, with kink prevention, IP67 |
| Order No. | 1963330000 |
| Type | IE-PS-V04P-2LC-MM-BP |
| GTIN (EAN) | 4032248651801 |
| Qty. | 10 items |

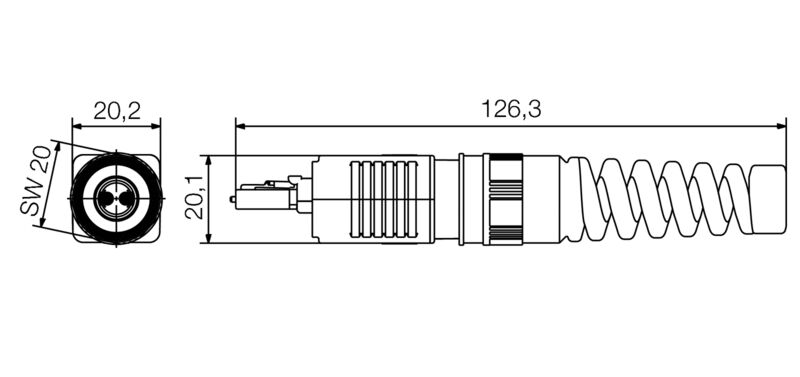

| Depth | 126.3 mm |
| Depth (inches) | 4.972 inch |
| Height | 20.1 mm |
| Height (inches) | 0.791 inch |
| Width | 20.2 mm |
| Width (inches) | 0.795 inch |
| Net weight | 43.3 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
| Colour | Miscellaneous |
| Connection 1 | LC |
| Connection 2 | gluing, crimping, polishing |
| Description of article | Variant 4, LC-Duplex multi-mode, with kink prevention |
| Fibre type | Multimode |
| Housing main material | PA UL 94 V0 |
| Housing material, insert |
PBT
Zinc diecast |
| Insertion loss |
0.5 dB singlemode
0.4 dB multimode |
| Plugging cycles | 500 |
| Protection degree | IP67 |
| Return loss (attenuation) | 40 dB singlemode; 30 dB multimode |
| Sheath diameter, max. | 10 mm |
| Sheath diameter, min. | 5 mm |
| Connector standard |
IEC 61076-3-106 Var. 4
IEC 61754-20 |
| Product Change Notification |
[20210412 Technical change for cap nut V1 and V4](https://mdcop.weidmueller.com/mediadelivery/asset/900_207360)
[20210412 Technische Änderung zu Hutmutter V1 und V4](https://mdcop.weidmueller.com/mediadelivery/asset/900_207361) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001122 |
| ETIM 7.0 | EC001122 |
| ETIM 8.0 | EC001122 |
| ETIM 9.0 | EC001122 |
| ECLASS 9.0 | 19-17-01-22 |
| ECLASS 9.1 | 19-17-01-22 |
| ECLASS 10.0 | 19-17-01-22 |
| ECLASS 11.0 | 19-17-01-22 |
| ECLASS 12.0 | 19-17-01-22 |
| ECLASS 13.0 | 19-17-01-22 |
| ECLASS 14.0 | 19-17-01-22 |
| ROHS | Conform |
