IE-SW-SL20M-8GT-12GESFP-HV

Download data sheet Related products

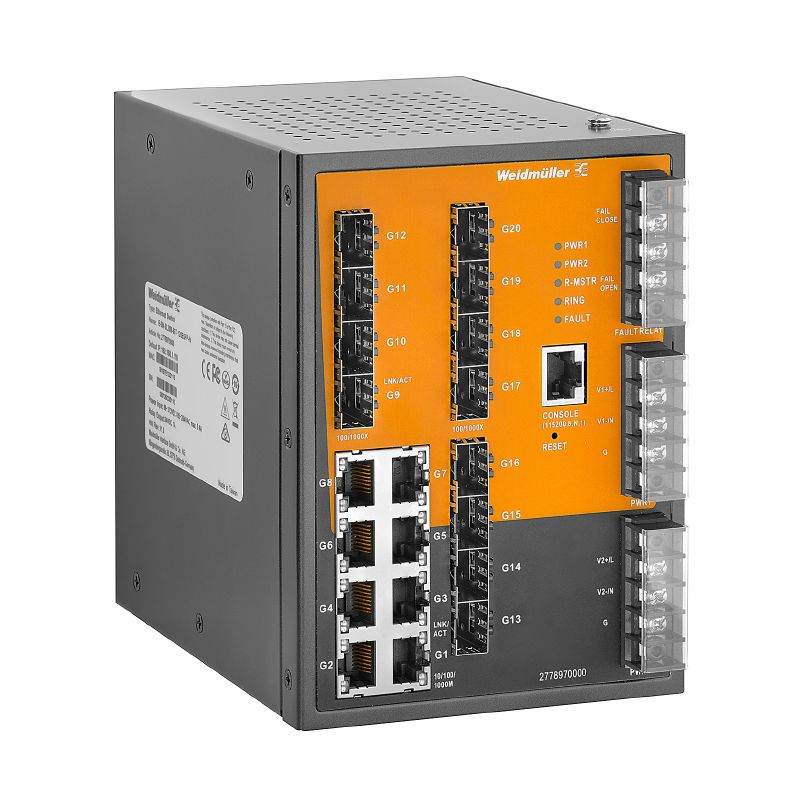

IE-SW-SL20M-8GT-12GESFP-HV

Layer 2 Network Switch, managed, Gigabit Ethernet, IEC 61850-3 / IEEE 1613, high voltage, Number of ports: 8x RJ45, 12x 100/1000BaseSFP Slot, IP30, -40 °C...85 °C

Item No. 2778970000

Properties

General ordering data

Version	Layer 2 Network Switch, managed, Gigabit Ethernet, IEC 61850-3 / IEEE 1613, high voltage, Number of ports: 8x RJ45, 12x 100/1000BaseSFP Slot, IP30, -40 °C...85 °C
Order No.	2778970000
Type	IE-SW-SL20M-8GT-12GESFP-HV
GTIN (EAN)	4064675048237
Qty.	1 items

Dimensions and weights

Depth	159 mm
Depth (inches)	6.26 inch
Height	154 mm
Height (inches)	6.063 inch
Width	115 mm
Width (inches)	4.528 inch
Net weight	1,900 g

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...85 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1 Lead monoxide 1317-36-8
SCIP	9229992a-00b9-4096-8962-200a7f33e289

EMC conformity and approvals

EMC standards	EN 55032 CISPR 22 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2 EN 61000-3-3 FCC Part 15 Subpart B Class A EN 55035 IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 3 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V
Free fall	IEC 60870-2-2 class Cm
Power Transmission & Distribution Systems acc. to standard	IEEE 1613 IEC 61850-3
Safety standard	SELV according to EN 62368-1
Shock	IEC 60870-2-2 class Cm
Vibration	IEC 60870-2-2 class Cm and class Bm

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating altitude	Altitude, max.: 2,000 m Note: in acc. with UL Altitude, max.: 6,000 m Note: for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.	85 °C
Operating temperature, min.	-40 °C
Storage temperature, max.	85 °C
Storage temperature, min.	-40 °C

Time interval

5 years

Alarm contact	1 relay output with a current capacity of 1 A at 24 V DC
Console port interface	RS-232 (RJ45 connector)
Fibre-optic ports	100/1000Base SFP Slot
Function reset button	<5 sec: System reboot and set LAN IP to factory Default >5 sec: Factory default
Number of ports	8x RJ45 12x 100/1000BaseSFP Slot
RJ45 ports	10/100/1000BaseT(X) auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port

Management features

Device configuration	Webbrowser (HTTP/HTTPS) SNMP v1/v2c/v3 Local serial console port (RS-232 via RJ-45 port) Upload of a configuration file via web-interface, TFTP-Server or external backup module Command Line Interface (Telnet/SSH)
Monitoring function	SNMP v1/v2c/v3 Link Layer Discovery Protocol (LLDP) Ethernet cable diagnostics on RJ-45 ports Port mirroring (local, remote) Port statistics Port monitoring Syslog RMON (Remote monitoring) Event based warning via E-Mail Event based warning via relay Event based warning via SNMP trap
Network redundancy	Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) Multiple Spanning Tree Protocol (MSTP) O-Ring (recovery time <30 ms) O-Chain (recovery time <30 ms) Link Aggregation Control Protocol (LACP) Fast recovery Media Redundancy Protocol (MRP-client)
Network traffic filter	Quality of Service (QoS) Tag based VLAN GVRP (GARP VLAN Registration Protocol) IGMP v2/v3 Traffic Rate Limiting Differentiated Services Code Point (DSCP) Specific prioritization of GOOSE and Sampled Value messages
IP-address management	Static DHCP-Client DHCP-Server (port based, pool-based) DHCP Option 82 DHCP-Relay
Security functions	VLAN segmentation Enable/disable ports TACACS+ and IEEE 802.1X User Authentication DoS/DDoS auto prevention Access Control List DHCP snooping Loop protection Management access security via privilege level configuration for different user roles
Time synchronization management	SNTP server SNTP client PTPv2
Industrial protocol support	PROFINET device acc. to conformance class B Modbus/TCP slave MMS server

MTBF	According to Standard: Telcordia SR-332 Operating time (hours), min.: 421,961 h

Connection type	2x 3-pin fork/ring lug connection
Current consumption	Voltage: 110 V Current: 0.372 A Voltage: 220 V Current: 0.229 A
Overload current protection	Yes
Reverse polarity protection	Yes
Voltage supply	110/220 V DC 110/220 V AC 2 redundant isolated inputs
Voltage supply range	Voltage type: DC Voltage, min.: 88 V Voltage, max.: 373 V Voltage type: AC Voltage, min.: 85 V Voltage, max.: 264 V

Switch characteristics

Bandwidth backplane	40 Gbit/s
Jumbo frame support	up to 9.6 KB
MAC table size	8 K
Max. number of available VLANs	4095
Number of IGMP-Groups per VLAN	256
Packet buffer size	4 Mbit
Priority queues	8
VLAN-ID max	4094
VLAN-ID min	1

Housing main material	Metal
Protection degree	IP30
Speed	Gigabit Ethernet
Switch	managed
Type of mounting	DIN rail

Data switching	Store and Forward
Flow control	IEEE 802.3x flow control
Standard	IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-TX and 100BASE-FX IEEE 802.1Q for VLAN tagging IEEE 802.1X for authentication IEEE 802.1AB for Link Layer Discovery protocol (LLDP) IEEE 1588 PTPv2 for time synchronization IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.3x for flow control IEEE 802.3ad for port trunk with LACP IEEE 802.1D for the Spanning Tree protocol IEEE 802.1w for Rapid STP IEEE 802.1s for the Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p for Class of Service

Approval/Certificate/Document of Conformity	[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_217555) [RCM Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_225346) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253782) [Manufacturer's declaration for operating altitude](https://mdcop.weidmueller.com/mediadelivery/asset/900_263604)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_239579) [Configuration tutorials -- Video Tutorial Substation Line](https://mdcop.weidmueller.com/mediadelivery/asset/900_319129)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2778970000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2778970000)
Product Change Notification	[Firmware Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_266455)
Software	[Device description -- SNMP private MIB](https://mdcop.weidmueller.com/mediadelivery/asset/900_229486) [Firmware -- Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_245808) [Device description -- GSDML file](https://mdcop.weidmueller.com/mediadelivery/asset/900_269428)
User Documentation	[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_217187) [User manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_245662) [User manual Command Line Interface](https://mdcop.weidmueller.com/mediadelivery/asset/900_245663) [Application notes -- Security Data Sheet Full Gigabit Ethernet Substation Line Switches](https://mdcop.weidmueller.com/mediadelivery/asset/900_322870) [Application notes -- Industrial Product Security Guideline](https://mdcop.weidmueller.com/mediadelivery/asset/900_322935)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000734
ETIM 7.0	EC000734
ETIM 8.0	EC000734
ETIM 9.0	EC000734
ECLASS 9.0	19-17-01-06
ECLASS 9.1	19-17-01-06
ECLASS 10.0	19-17-04-01
ECLASS 11.0	19-17-04-01
ECLASS 12.0	19-17-04-01
ECLASS 13.0	19-17-04-01
ECLASS 14.0	19-17-04-01

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
