Properties

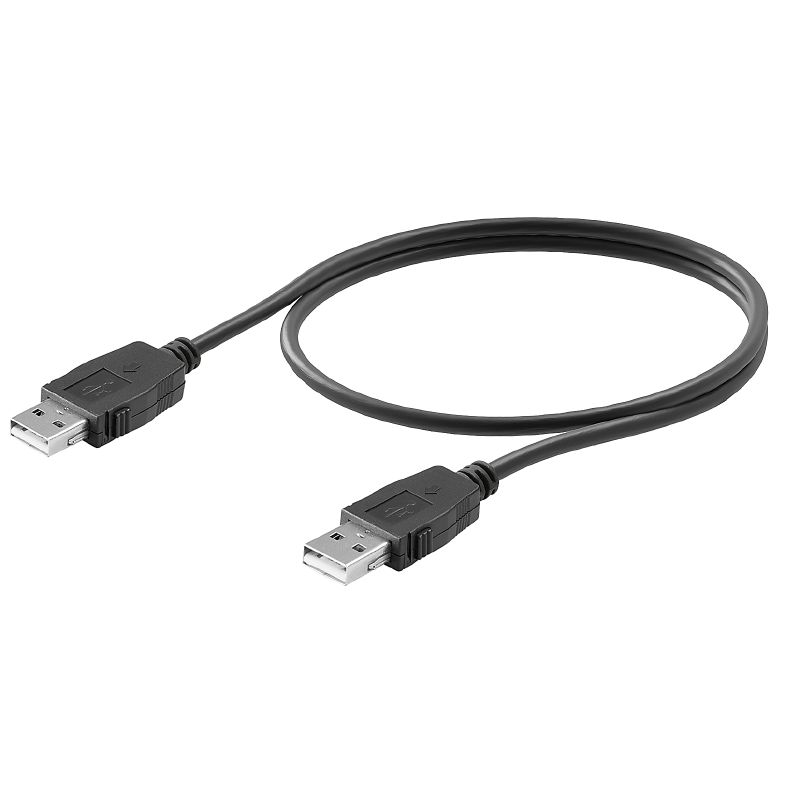

| Version | USB cable, USB A, with mechanical locking, USB A, with mechanical locking, PVC, 1 m |
| Order No. | 2695980010 |
| Type | IE-USB-A-A-1.0M-ML |
| GTIN (EAN) | 4050118702828 |
| Qty. | 1 items |
| Length | 1 m |
| Length (inches) | 39.37 inch |
| Net weight | 42 g |
| Operating temperature | 0 °C...80 °C |
| Connector left |
USB A
with mechanical locking |
| Connector right |
USB A
with mechanical locking |
| Material sheath | PVC |
| Product type | USB cable |
| Sheathing colour | black |
| Sheathing colour | black |
| Contact surface | Gold over nickel |
| Cross-section | 2*AWG28 + 2*AWG24 |
| Material sheath | PVC |
| Sheath diameter | 4.5 mm |
| Sheath diameter, max. | 4.7 mm |
| Sheath diameter, min. | 4.3 mm |
| Sheathing colour | black |
| Plug left | USB A, IP20, male contact, straight, plug, with mechanical locking, Plastic, shielded |
| Plug right | USB A, IP20, male contact, straight, plug, with mechanical locking, Plastic, shielded |
| Contact surface, plug, left | Gold over nickel |
| Plug left | USB A, IP20, male contact, straight, plug, with mechanical locking, Plastic, shielded |
| Contact surface | Gold over nickel |
| Plug right | USB A, IP20, male contact, straight, plug, with mechanical locking, Plastic, shielded |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001408 |
| ETIM 7.0 | EC001408 |
| ETIM 8.0 | EC001408 |
| ETIM 9.0 | EC001408 |
| ECLASS 9.0 | 27-06-20-11 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-01-06 |
| ECLASS 11.0 | 27-06-01-06 |
| ECLASS 12.0 | 27-06-01-06 |
| ECLASS 13.0 | 27-06-01-06 |
| ROHS | Conform |
