Properties

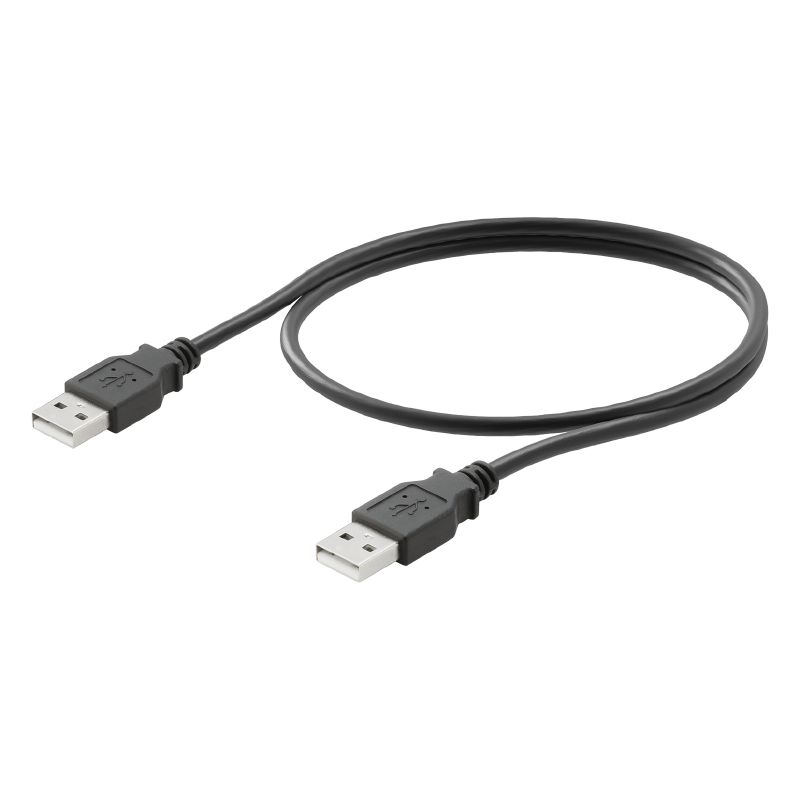

| Version | USB cable, USB A, USB A, PVC, 3 m |
| Order No. | 1993550030 |
| Type | IE-USB-A-A-3.0M |
| GTIN (EAN) | 4050118378566 |
| Qty. | 1 items |
| Length | 3 m |
| Length (inches) | 118.11 inch |
| Net weight | 58 g |
| Operating temperature | -15 °C...80 |
| Connector left | USB A |
| Connector right | USB A |
| Material sheath | PVC |
| Product type | USB cable |
| Sheathing colour | black |
| Sheathing colour | black |
| Contact surface | Gold over nickel |
| Cross-section | 2*AWG28 + 2*AWG24 |
| Material sheath | PVC |
| Sheath diameter | 4.5 mm |
| Sheath diameter, max. | 4.7 mm |
| Sheath diameter, min. | 4.3 mm |
| Sheathing colour | black |
| Plug left | USB A, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | USB A, IP20, male contact, straight, plug, Plastic, shielded |
| Contact surface, plug, left | Gold over nickel |
| Plug left | USB A, IP20, male contact, straight, plug, Plastic, shielded |
| Contact surface | Gold over nickel |
| Plug right | USB A, IP20, male contact, straight, plug, Plastic, shielded |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001408 |
| ETIM 7.0 | EC001408 |
| ETIM 8.0 | EC001408 |
| ETIM 9.0 | EC001408 |
| ECLASS 9.0 | 27-06-20-11 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-01-06 |
| ECLASS 11.0 | 27-06-01-06 |
| ECLASS 12.0 | 27-06-01-06 |
| ECLASS 13.0 | 27-06-01-06 |
| ROHS | Conform |
