Properties
| Version | Primary current: 300 A, Secondary current max.: 5 A, Load: 2.5 VA, Tolerance class: 1, Split-core current transformer |
| Order No. | 2753230000 |
| Type | KCMA-42-300-5A-2.5VA-1 |
| GTIN (EAN) | 4050118896251 |
| Qty. | 1 items |

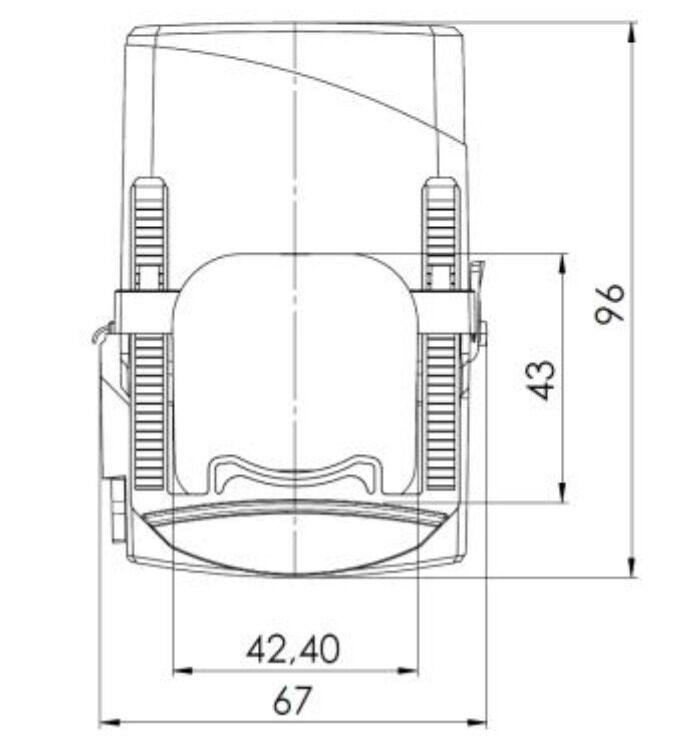

| Depth | 69 mm |
| Depth (inches) | 2.717 inch |
| Height | 96 mm |
| Height (inches) | 3.78 inch |
| Width | 67 mm |
| Width (inches) | 2.638 inch |
| Net weight | 362 g |
| Operating temperature | -5 °C...50 °C |
| Type of conductor | Insulated conductor only |
| Round conductor | 42 mm |
| Installation location | Indoor use |
| Load | 2.5 VA |
| Primary current | 300 A |
| Secondary current | 0...5 A |
| Tolerance class | 1 |
| Manufacturer | MBS AG |
| Cable length | 2.5 m |
| Protection degree | IP20 |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_256202) |
| User Documentation | [Instruction sheet German](https://mdcop.weidmueller.com/mediadelivery/asset/900_35463) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ROHS | Conform |
