Properties

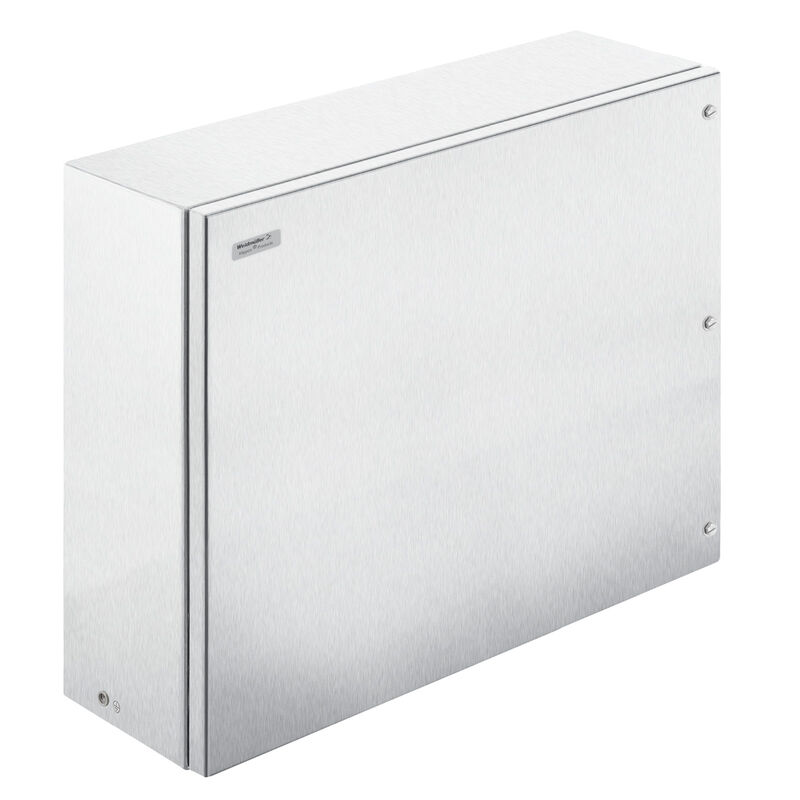

| Version | Klippon EBx HS (Essential Box Ex - Hinge Screw), Empty enclosure, Height: 500 mm, Width: 600 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), Brushed, silver |
| Order No. | 8000071026 |
| Type | KEBXHS506020S4B1 AK |
| GTIN (EAN) | 4064675385059 |
| Qty. | 1 items |
| Local product | Only available in certain countries |

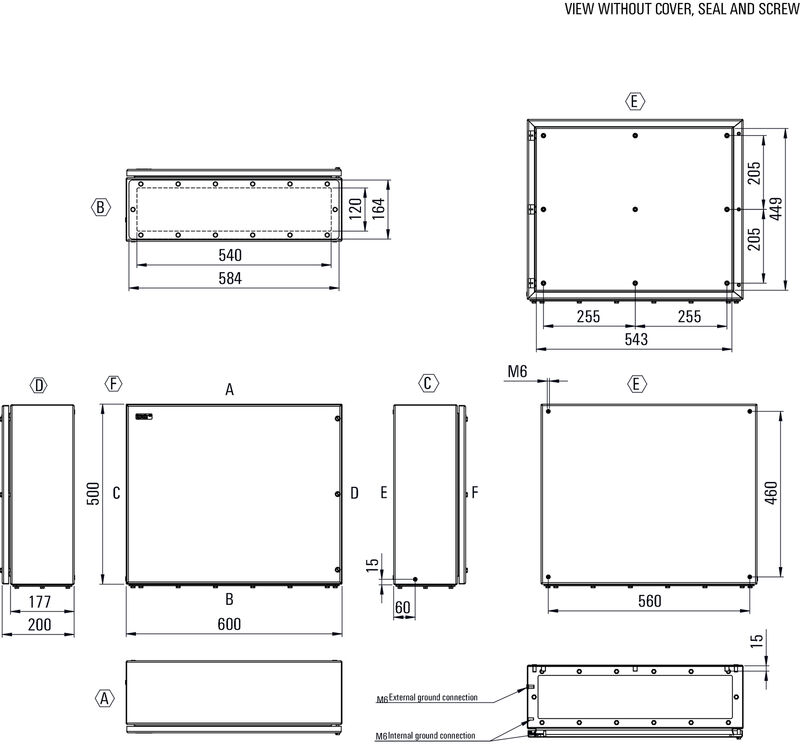

| Depth | 200 mm |
| Depth (inches) | 7.874 inch |
| Height | 500 mm |
| Height (inches) | 19.685 inch |
| Width | 600 mm |
| Width (inches) | 23.622 inch |
| Mounting dimension - height | 460 mm |
| Mounting dimension - width | 560 mm |
| Net weight | 15,678.16 g |
| Operating temperature | -55 °C...135 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| M12 | 234 |
| M16 | 114 |
| M20 | 75 |
| M25 | 48 |
| M32 | 27 |
| M40 | 14 |
| M50 | 11 |
| M63 | 5 |
| M75 | 4 |
| M12 | 234 |
| M16 | 114 |
| M20 | 75 |
| M25 | 48 |
| M32 | 27 |
| M40 | 14 |
| M50 | 11 |
| M63 | 5 |
| M75 | 4 |
| M12 | 217 |
| M16 | 115 |
| M20 | 74 |
| M25 | 45 |
| M32 | 22 |
| M40 | 18 |
| M50 | 7 |
| M63 | 6 |
| M75 | 5 |
| Approval conditions |
ATEX
IECEX INMETRO |
| Attestation of Conformatiy No. (AoC) | DE PS265x 210819 000ISS01 |
| Certificate No. (ATEX) | IBEXU21ATEX1016U |
| Certificate No. (IECEX) | IECEXIBE21.0012X |
| Certificate no. empty enclosure (ATEX) | IBExU 21ATEX 1016 U |
| Certificate no. empty enclosure (IECEx) | IECEx IBE 21.0006U |
| Certificate no. empty enclosure (INMETRO) | LMP 21.0601U |
| Certificate no. Terminal Box (ATEX) | IBExU 21ATEX 1017 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 21.0012 |
| Certificate no. Terminal Box (INMETRO) | LMP 21.0602X |
| Declaration of Conformatiy No. (DoC LVD) | DE PS265X 210819 001ISS01 |
| Access opening: height | 449.6 mm |
| Access opening: width | 543.6 mm |
| AF size | 10 mm |
| Areas of use |
Chemical industry
Explosive risk zone Oil and gas industry Onshore Process industry Building systems and technology Machine construction Packaging industry |
| Enclosure attachment | 4 or 6, M6 blind thread hole on backside; optionally via additional mounting feet |
| Flange plate | Yes |
| Flange plate mounting | M6 hexagonal head screws 10 SW |
| Gland plates | Bottom |
| Impact resistance |
7 J ATEX version
10 J version standard |
| Integral fixing | 4, 6 or 9 stud bolts M6 inner (female) thread |
| Lid | Yes |
| Lid attachment | M6 hex-head slotted screws SW10 + hinges |
| Material | Stainless steel 1.4404 (316L) |
| Material thickness | 1.5 mm |
| Material thickness of cover | 1.5 mm |
| Material thickness of flange | 3 mm |
| Max. payload | 31 kg |
| Number of lid screws | 3 |
| Opening angle lid | 125 ° |
| Operating temperature, max. | 135 °C |
| Operating temperature, min. | -55 °C |
| Position PE bolts | Enclosure side C |
| Protection class (UL) |
Type 1
Type 4 Type 4X |
| Protection degree | IP66 |
| Seal material | Silicone (cover + flange) |
| Standards |
EN 60079-0
IEC 60079-0 EN 60079-7 IEC 60079-7 EN 60079-11 IEC 60079-11 EN 60079-31 IEC 60079-31 |
| Surface finish | Brushed |
| Torque for lid screws | 2.5 Nm |
| WDU 10 / ZDU 10 | 6x49 |
| WDU 16 / ZDU 16 | 6x41 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 6x98 |
| WDU 35 / ZDU 35 | 6x30 |
| WDU 4 / ZDU 4 | 6x82 |
| WDU 6 / ZDU 6 | 6x61 |
| Earth, enclosure, internal | Welded-on M6 stainless-steel earth stud in enclosure body and lid. |
| WDU 10 / ZDU 10 | 6x40 |
| WDU 16 / ZDU 16 | 6x33 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 6x80 |
| WDU 35 / ZDU 35 | 6x25 |
| WDU 4 / ZDU 4 | 6x67 |
| WDU 6 / ZDU 6 | 6x50 |
| Product information | All articles with M6 threaded rivet as standard; UL variants with M10 earth bolt on request |
| Approval/Certificate/Document of Conformity |
[IBEXU21ATEX1017X](https://mdcop.weidmueller.com/mediadelivery/asset/900_244953)
[IBEXU21ATEX1016U](https://mdcop.weidmueller.com/mediadelivery/asset/900_244954) [EU Declaration of Conformity - Klippon EBx Empty Enclosures LVD - DoC DE PS265X 210819 001ISS01](https://mdcop.weidmueller.com/mediadelivery/asset/900_244973) [UKCA Declaration of Conformity - Klippon EBx Empty Enclosures LVD - UKCA DE PS265X 220623 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319942) [IECExIBE21.0012](https://mdcop.weidmueller.com/mediadelivery/asset/900_244955) [IECExIBE21.0006U](https://mdcop.weidmueller.com/mediadelivery/asset/900_244956) [UKCA TÜV 22 UKEX 7098 X](https://mdcop.weidmueller.com/mediadelivery/asset/900_263774) [UKCA TÜV 22 UKEX 7097 U](https://mdcop.weidmueller.com/mediadelivery/asset/900_263775) [Attestation of Conformity - Klippon EBx Empty Enclosures - AoC DE PS265x 210819 000ISS01](https://mdcop.weidmueller.com/mediadelivery/asset/900_244960) [UKCA Attestation of Conformity - Klippon EBx Empty Enclosures - UKCA DE PS265X 220623 000ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319921) [CERTIFICADO LMP 21.0601U KLIPPON EBx](https://mdcop.weidmueller.com/mediadelivery/asset/900_308045) [CERTIFICADO LMP 21.0602X KLIPPON EBx](https://mdcop.weidmueller.com/mediadelivery/asset/900_308046) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_216598) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000071026) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-02 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULusEX) | E223792 |
