Terminal Box, ATEX ll 2GD T85°C Ex e ll T6, KLIPPON K11 EX, KL SET 5Z2.5 SDrill holes side A: 2 x M20x1.5, Drill holes side B: 2 x M20x1.5

Item No. 8000004208
Download data sheet Product Downloads
Accessories 1 Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Certificate numbers enclosure Material data General data Housing Standard features Classifications

Approvals

ROHS
Conform

General ordering data

Version
Terminal Box, ATEX ll 2GD T85°C Ex e ll T6, KLIPPON K11 EX, KL SET 5Z2.5 SDrill holes side A: 2 x M20x1.5, Drill holes side B: 2 x M20x1.5
Order No.
8000004208
Type
KLIPPON K11 M20ZCSS EX
GTIN (EAN)
4032248986514
Qty.
1  items

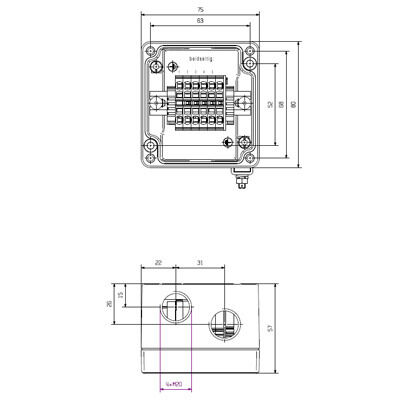

Dimensions and weights

Depth
57  mm
Depth (inches)
2.244  inch
Height
80  mm
Height (inches)
3.15  inch
Width
75  mm
Width (inches)
2.953  inch
Net weight
380  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Certificate numbers enclosure

Certificate no. Terminal Box (ATEX)
IBExU12ATEX1145 X
Certificate no. Terminal Box (IECEx)
IECEx IBE 13.0002X

Material data

Material
Aluminium AlSi12
Surface finish
untreated

General data

Protection degree
IP66
IP67

Housing

Drill holes side A
2 x M20x1.5
Drill holes side B
2 x M20x1.5
Material
Aluminium AlSi12

Standard features

Version
ATEX ll 2GD T85°C Ex e ll T6

Classifications

ETIM 6.0
EC002503
ETIM 7.0
EC002503
ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 9.0
27-18-05-02
ECLASS 9.1
27-18-05-90
ECLASS 10.0
27-18-05-02
ECLASS 11.0
27-18-05-02
ECLASS 12.0
27-18-05-02
ECLASS 13.0
27-18-05-02
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
