Properties

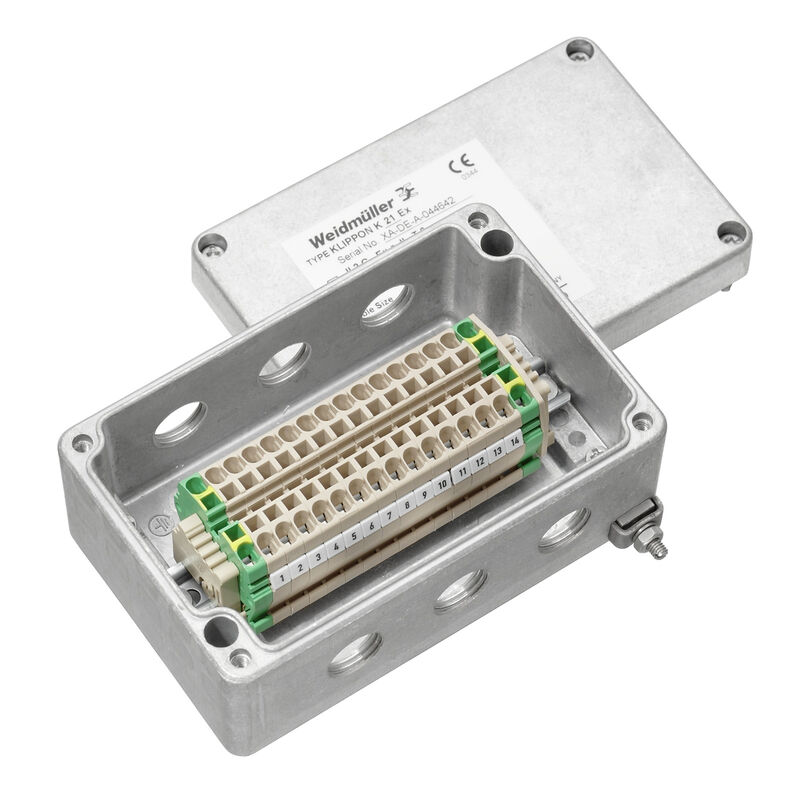

| Version | Terminal Box, ATEX ll 2GD T85°C Ex e ll T6, KLIPPON K21 EX, KL SET 14Z2.5 S, Drill holes side A: 3 x M16x1.5, Drill holes side B: 3 x M16x1.5 |
| Order No. | 8000004211 |
| Type | KLIPPON K21 M16ZCSS EX |
| GTIN (EAN) | 4032248986408 |
| Qty. | 1 items |
| Depth | 57 mm |
| Depth (inches) | 2.244 inch |
| Height | 80 mm |
| Height (inches) | 3.15 inch |
| Width | 125 mm |
| Width (inches) | 4.921 inch |
| Net weight | 549 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c0b142f1-4049-4b95-bbc3-9959a2d3b09c |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
| Material | Aluminium AlSi12 |
| Surface finish | untreated |
| Protection degree |
IP66
IP67 |
| Drill holes side A | 3 x M16x1.5 |
| Drill holes side B | 3 x M16x1.5 |
| Material | Aluminium AlSi12 |
| Version | ATEX ll 2GD T85°C Ex e ll T6 |
| Approval/Certificate/Document of Conformity |
[IBEXU12ATEX1145X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157739)
[IECEXIBE13.0002X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157741) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-90 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| ROHS | Conform |
