Properties
| Version | cable lug, terminal end,35 mm² |
| Order No. | 1496570000 |
| Type | KRN-M10/-35 |
| GTIN (EAN) | 4050118305920 |
| Qty. | 100 items |
| Net weight | 21.77 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Version | Euro series, standard |
| Conductor cross-section | 35 mm² |

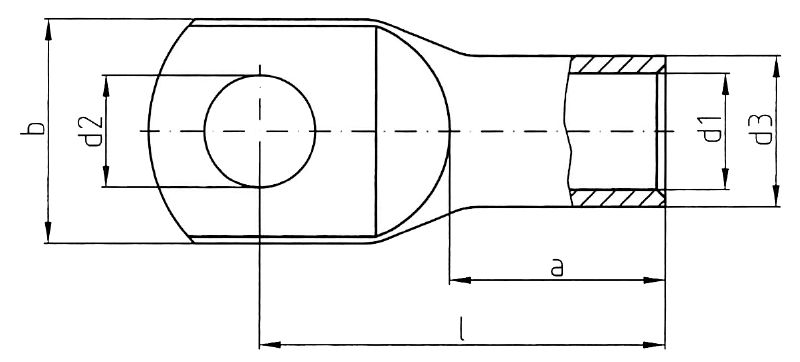

| Connection length (I) | 36.5 mm |
| Flange width (b) | 20 mm |
| Hole | M10 |
| Inside diameter of flange (d2) | 10.5 mm |
| Inside diameter of shaft (d1) | 8.5 mm |
| Insulation | not available |
| Outside diameter of shaft (d3) | 12 mm |
| Shaft length (a) | 17 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54290) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1496570000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1496570000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001051 |
| ETIM 7.0 | EC001051 |
| ETIM 8.0 | EC001051 |
| ETIM 9.0 | EC001051 |
| ECLASS 9.0 | 27-40-02-05 |
| ECLASS 9.1 | 27-40-02-05 |
| ECLASS 10.0 | 27-40-02-05 |
| ECLASS 11.0 | 27-40-02-05 |
| ECLASS 12.0 | 27-40-02-05 |
| ECLASS 13.0 | 27-40-02-05 |
| ECLASS 14.0 | 27-40-02-05 |
| ROHS | Conform |
