Properties
| Version | Cutting tools |
| Order No. | 2876460000 |

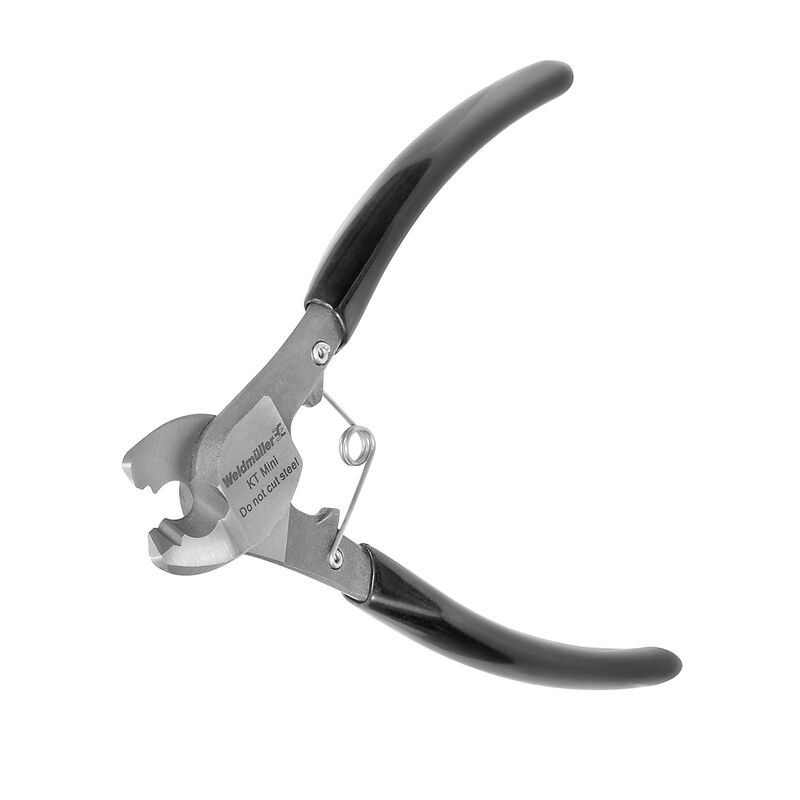

| Type | KT MINI |
| GTIN (EAN) | 4064675664024 |
| Qty. | 1 items |
| Depth | 9.5 mm |
| Depth (inches) | 0.374 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 42 mm |
| Width (inches) | 1.654 inch |
| Net weight | 91 g |
| REACH SVHC | Lead 7439-92-1 |
| Copper cable - flexible, max. | 16 mm² |
| Copper cable - flexible, max. (AWG) | 6 AWG |
| Copper cable - solid, max. | 35 mm² |
| Copper cable - solid, max. (AWG) | 2 AWG |
| Copper cable - stranded, max. | 25 mm² |
| Copper cable - stranded, max. (AWG) | 4 AWG |
| Copper cable, max. diameter | 7 mm |
| Single-core aluminium cable, max.(mm²) | 35 mm² |
| Stranded aluminium cable, max (mm²) | 25 mm² |
| Stranded aluminium cable, max. (AWG) | 4 AWG |
| Stranded aluminium cable, max. diameter | 7 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000142 |
| ETIM 7.0 | EC000142 |
| ETIM 8.0 | EC000142 |
| ETIM 9.0 | EC000142 |
| ECLASS 9.0 | 21-04-47-01 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-47-01 |
| ECLASS 11.0 | 21-04-47-01 |
| ECLASS 12.0 | 21-04-47-01 |
| ECLASS 13.0 | 21-04-47-01 |
