KTB QL 353520 S4E3

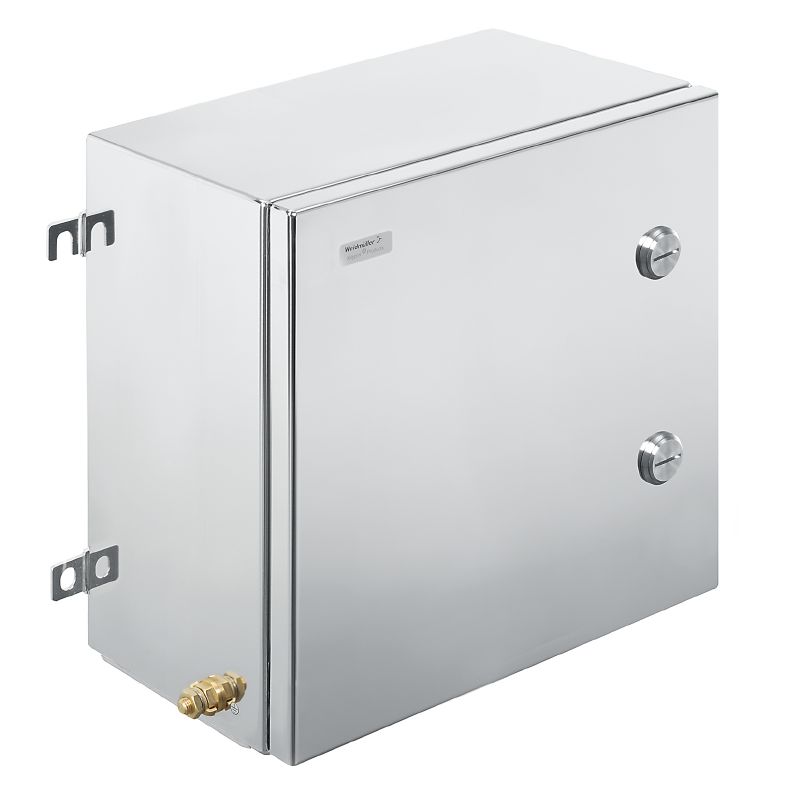

Similar to illustration

KTB QL 353520 S4E3

Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, Height: 350 mm, Width: 350 mm, Depth: 200 mm, Basic material: Stainless steel 1.4404 (316L), electropolished, silver

Item No. 8000109892
Download data sheet Engineering Support Product Downloads
Accessories 21 Individual parts 1 Related products 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly Housing earth vertical assembly Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, Height: 350 mm, Width: 350 mm, Depth: 200 mm, Basic material: Stainless steel 1.4404 (316L), electropolished, silver
Order No.
8000109892
Type
KTB QL 353520 S4E3
GTIN (EAN)
4099986759879
Qty.
1  items

Dimensions and weights

Depth
200  mm
Depth (inches)
7.874  inch
Height
350  mm
Height (inches)
13.78  inch
Width
350  mm
Width (inches)
13.78  inch
Net weight
15,087.26  g

Temperatures

Operating temperature
-60 °C...135 °C
Note: room temperature (service)
Limited to IP66 protection when used in temperatures greater than 105 °C.

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
64dfc213-93f0-4c79-8ffa-c97fa9dcb873

Cable glands, left

M12
52
M16
30
M20
16
M25
12
M32
5
M40
4
M50
3
M63
3
M75
0

Cable glands, right

M12
52
M16
30
M20
16
M25
12
M32
5
M40
4
M50
3
M63
3
M75
0

Cable glands, top/bottom

M12
60
M16
36
M20
20
M25
16
M32
6
M40
5
M50
4
M63
3
M75
0

Certificate numbers enclosure

Approval conditions
ATEX
IECEX
INMETRO
cULus
Attestation of Conformatiy No. (AoC)
DE PS261X 160309 001ISS06
Certificate no. empty enclosure (ATEX)
IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)
IECEx IBE 14.0004U
Certificate no. empty enclosure (INMETRO)
LMP 21.0016U
Certificate no. Terminal Box (ATEX)
IBExU14ATEX1050
Certificate no. Terminal Box (IECEx)
IECEXIBE14.0013
Certificate no. Terminal Box (INMETRO)
LMP 21.0017
Certificate No. UL 508A
E223801
Certificate No. UL Haz.Loc.
E223792
Certificate No. UL Ord.Loc.
E243298
Certificate No. UL Terminal Box
E223792
Declaration of Conformatiy No. (DoC LVD)
DE PS261X 160412 001ISS03

General information

Areas of use
Explosive risk zone
Process industry
Oil and gas industry
Chemical industry
Offshore
Onshore
Basic material
Stainless steel 1.4404 (316L)
Enclosure attachment
4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Flange plate
No
Flange plate mounting
M6 hexagonal head screws 10 SW
Impact resistance
10 J version standard
7 joules in acc. with IEC 60079-0
Integral fixing
4, 6 or 9 stud bolts M6 inner (female) thread
Lid
Yes
Lid attachment
4 hinges and M6 hex-head slotted screws SW10
Material thickness
1.5  mm
Material thickness of cover
1.5  mm
Material thickness of enclosure
1.5  mm
Material thickness of flange
3  mm
Note: protection class
If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Opening angle lid
130  °
Operating temperature, max.
135  °C
Operating temperature, min.
-60  °C
Position PE bolts
Enclosure side C
Protection class (UL)
Type 3
Type 4X
Type 12
Protection degree
IP66
IP67
Seal material
Silicone
Seal material of cover
Silicone
Seal material of flange plate
Silicone
Silicone
Yes
Standards
DIN EN 62208 - Empty enclosure standard
DIN EN 61373 Class 1B**
DIN EN 15085-2
EN 60079-0
EN 60079-7
EN 60079-31
IEC 60079-0
IEC 60079-7
IEC 60079-31
Surface finish
electropolished

horizontal assembly

WDU 10 / ZDU 10
2x25
WDU 16 / ZDU 16
1x20
WDU 2,5 / ZDU 2,5 / IDU 2,5
2x49
WDU 35 / ZDU 35
1x15
WDU 4 / ZDU 4
2x41
WDU 6 / ZDU 6
2x31
Fuse holder available
No

Housing earth

Earth, enclosure, cover
Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Earth, enclosure, external
Continuous M10 earth stud in body enclosure
Earth, enclosure, internal
Welded-on M6 stainless-steel earth stud in enclosure body and lid.

vertical assembly

WDU 10 / ZDU 10
2x25
WDU 16 / ZDU 16
1x20
WDU 2,5 / ZDU 2,5 / IDU 2,5
2x49
WDU 35 / ZDU 35
1x15
WDU 4 / ZDU 4
2x41
WDU 6 / ZDU 6
2x31

Classifications

ETIM 6.0
EC000261
ETIM 7.0
EC000261
ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 9.0
27-18-01-01
ECLASS 9.1
27-18-92-90
ECLASS 10.0
27-18-01-01
ECLASS 11.0
27-18-01-01
ECLASS 12.0
27-18-01-01
ECLASS 13.0
27-18-01-01
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
