Properties

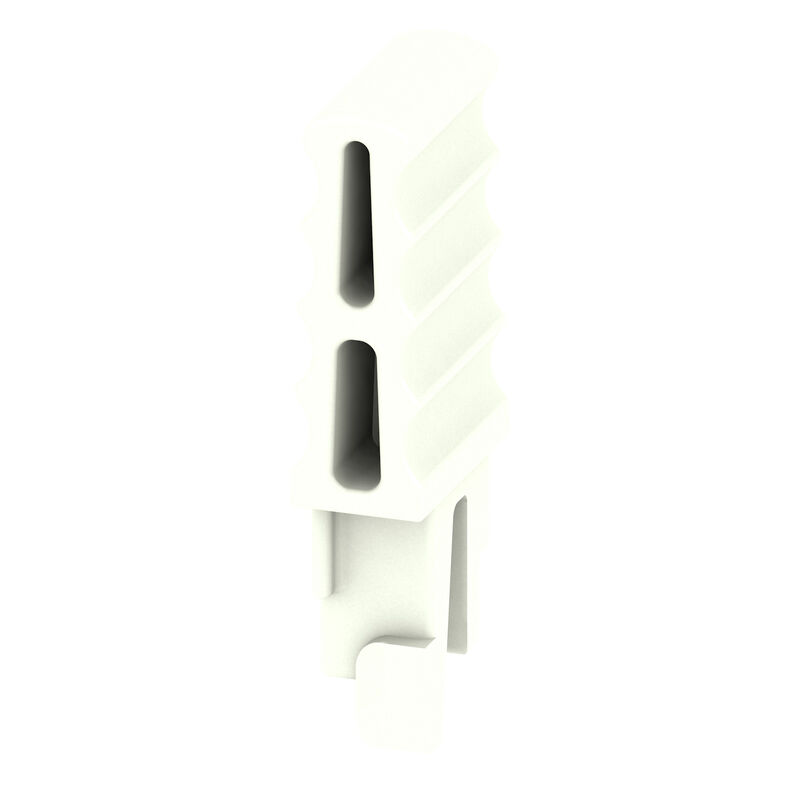

| Version | Locking lever (terminal) |
| Order No. | 2817220000 |
| Type | LL TTB 6/1 WT |
| GTIN (EAN) | 4064675322535 |
| Qty. | 50 items |
| Depth | 40 mm |
| Depth (inches) | 1.575 inch |
| Height | 19.7 mm |
| Height (inches) | 0.776 inch |
| Width | 7.6 mm |
| Width (inches) | 0.299 inch |
| Net weight | 0.4 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | white |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_239582) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2817220000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
